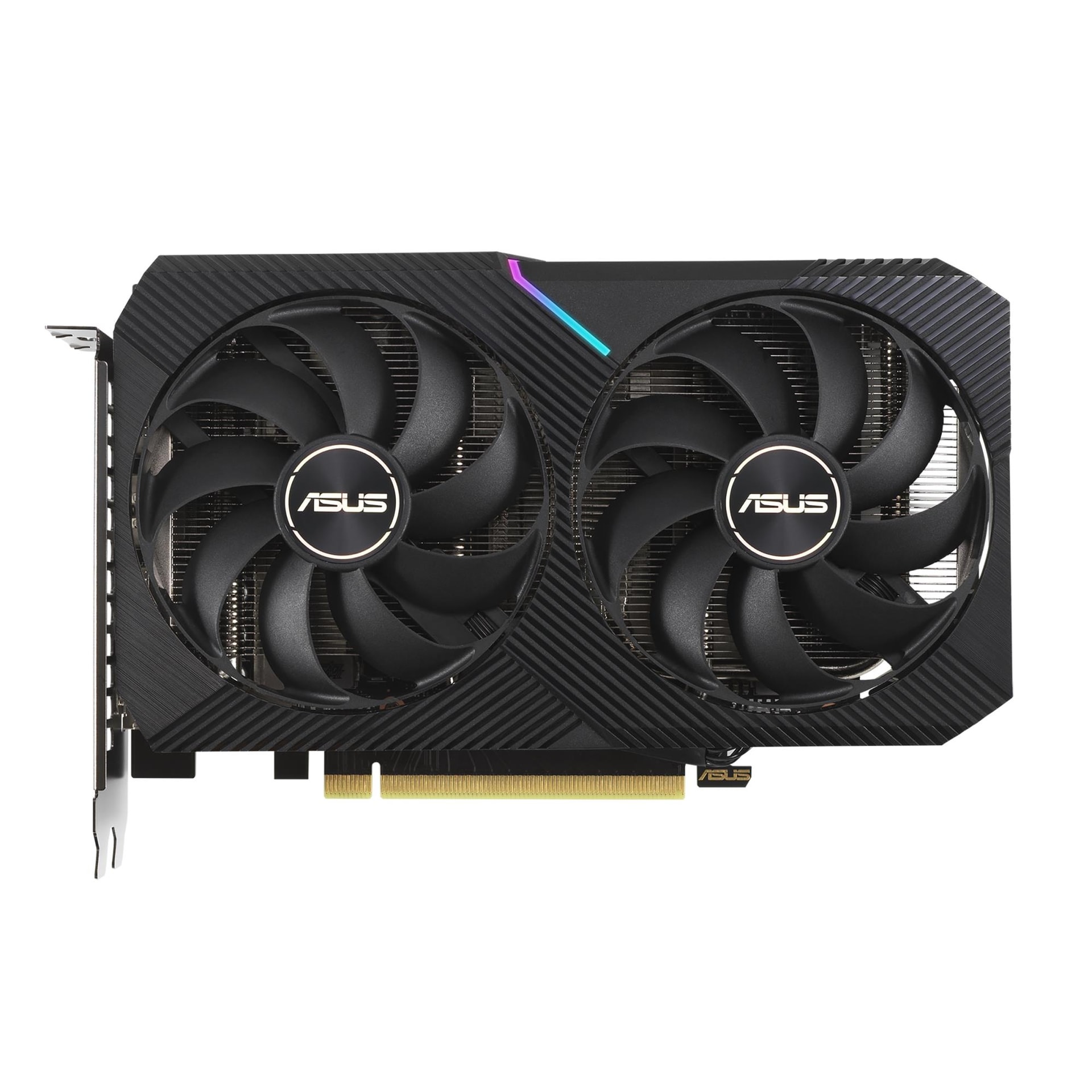

ASUS Dual GeForce RTX 3060 OC V2 graphics card, 12 GB GDDR6
ASUS

ASUS Dual GeForce RTX 3060 OC V2 graphics card, 12 GB GDDR6

  • Maximum resolution7680 x 4320
  • CUDA cores3584
  • Memory bus192
  • Discrete graphics card memory12 GB
  • Minimum system power supply650
  • Cooling typeActive
  • Depth38 mm
  • HDMI ports quantity1

The ASUS Dual GeForce RTX 3060 OC V2 is an NVIDIA Ampere graphics card with 12 GB of GDDR6 on a board just 200 mm long and two slots thick. Two Axial-tech fans cool a GPU that boosts to 1837 MHz, or 1867 MHz in OC mode. It needs one 8-pin power connector and at least a 650 W power supply.

  • GPU. NVIDIA GeForce RTX 3060
  • VRAM. 12 GB GDDR6, 192-bit bus
  • Interface. PCIe 4.0 x16
  • GPU clock. boost 1837 MHz, 1867 MHz in OC mode
  • Outputs. 1 × HDMI 2.1, 3 × DisplayPort 1.4a
  • Size. 200 mm long, 2-slot
  • Power. PSU 650 W or more, 1 × 8-pin power connector
  • Colour. black

Description

The maker highlights: 0 dB mode that stops the fans when the GPU is below 50 degrees and the load is light, and Auto-Extreme automated manufacturing.

Specifications

General

BrandASUS
Form factorFull-Height/Half-Length (FH/HL)
Model nameDUAL-RTX3060-O12G-V2
Product colourBlack
CUDAYes
HDCPYes
ManualYes
FireStreamNo
AMD FreeSyncNo
IlluminationYes
NVIDIA G-SYNCYes
Bracket heightFull-Height (FH)
Interface typePCI Express 4.0
Number of fans2
OpenGL version4.6
DirectX version12 Ultimate
Number of slots2
Warranty36 months
EAN195553309929

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

CUDA cores3584
Processor boost clock speed1837
Processor boost clock speed (OC mode)1867

Memory

Memory bus192
Memory bandwidth (max)15

Graphics

Discrete graphics card memory12 GB
Graphics processorGeForce RTX 3060
Graphics card memory typeGDDR6
Graphics processor familyNVIDIA
Maximum displays per videocard4

Ports

HDMI ports quantity1
HDMI version2.1
Dual Link DVINo
DisplayPort version1.4a
DisplayPorts quantity3
Supplementary power connectors1x 8-pin

Battery & power

Minimum system power supply650

Performance & capacities

Cooling typeActive
Cooling technologyASUS Axial-tech

Features

Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth38 mm
Height123 mm
Product Net Weight0.56 kg
Length200
