ASUS Prime Radeon RX 9070 XT OC graphics card, 16 GB GDDR6
ASUS

ASUS Prime Radeon RX 9070 XT OC graphics card, 16 GB GDDR6

  • Maximum resolution7680 x 4320
  • Stream processors4096
  • Memory bus256
  • Discrete graphics card memory16 GB
  • Minimum system power supply750
  • Cooling typeActive
  • Depth50 mm
  • HDMI ports quantity1

The ASUS Prime Radeon RX 9070 XT OC is an AMD graphics card with three Axial-tech fans and 16 GB of GDDR6, factory-overclocked to a 3010 MHz boost clock. It is 312 mm long and 2.5 slots thick. It needs three 8-pin power connectors and at least a 750 W power supply.

  • GPU. AMD Radeon RX 9070 XT
  • VRAM. 16 GB GDDR6, 256-bit bus
  • Interface. PCIe 5.0 x16
  • GPU clock. boost up to 3010 MHz

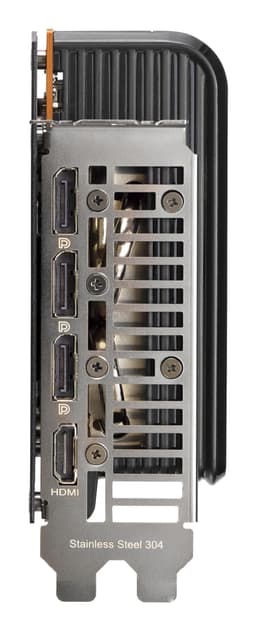

  • Outputs. 1 × HDMI 2.1b, 3 × DisplayPort 2.1a
  • Size. 312 mm long, 2.5-slot
  • Power. PSU 750 W or more, 3 × 8-pin power connector
  • Colour. black

Description

The maker highlights: a phase-change thermal pad on the GPU, dual ball bearing fans and 0 dB mode, which keeps the fans still while the GPU stays below 55 °C.

Specifications

General

BrandASUS
Form factorFull-Height/Full-Length (FH/FL)
Product colourBlack
CUDANo
HDCPYes
ManualYes
HDCP version2.3
Bracket heightFull-Height (FH)
Interface typePCI Express 5.0
Number of fans3
OpenGL version4.6
DirectX version12 Ultimate
Number of slots2.5
Data transfer rate20
Overclocked (OC) editionYes
Warranty36 months
EAN4711387829585

Display

Maximum resolution7680 x 4320
TV tuner integratedNo

Processor

Stream processors4096
Processor boost clock speed3010

Memory

Memory bus256

Graphics

Discrete graphics card memory16 GB
Graphics processorRadeon RX 9070 XT
Graphics card memory typeGDDR6
Graphics processor familyAMD
Maximum displays per videocard4

Ports

HDMI ports quantity1
HDMI version2.1b
Dual Link DVINo
DisplayPort version2.1a
DisplayPorts quantity3
Supplementary power connectors3x 8-pin

Battery & power

Minimum system power supply750

Performance & capacities

Cooling typeActive
Cooling technologyASUS Axial-tech

Features

Package typeBox
Parallel processing technology supportNot supported

Dimensions & weight

Depth50 mm
Height130 mm
Weight1.16 kg
Product Net Weight0.7 kg
Length312
