AXIS

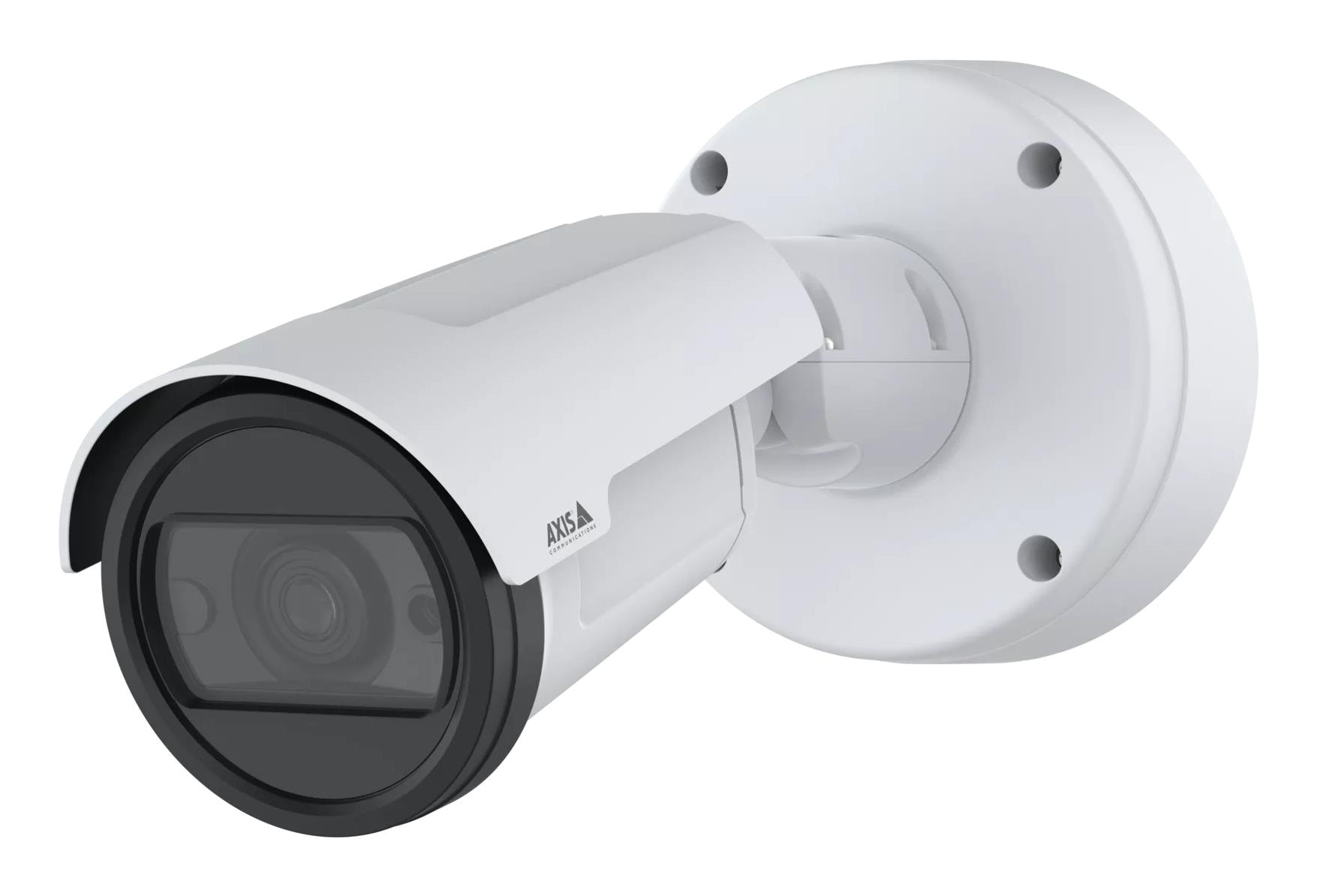

Axis P1485-LE IP camera, 2 MP, 10.8–28.2 mm, white
- Maximum resolution1920 x 1080
- Processor modelARTPEC-9
- RAM capacity2048
- Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
- Power consumption (max)12.95 W
- Operating temperature (T-T)0 – 40 – 60 °C
- Connectivity technologyWired
- Flash memory8192 MB
- Resolution. 2 MP, 1920 × 1080
- Lens. 10.8–28.2 mm, autofocus
- Field of view. 29.4–11° H
- Frame rate. 60 fps
- Video codecs. AV1/H.264/H.265/M-JPEG
- Protection rating. IP66, IP67, IK10
- Power. DC and PoE
- Colour. white
Description
The maker highlights: IK10, IP66/IP67 and NEMA 4X ratings, a −40 to 60 °C operating range, wind resistance up to 60 m/s, and redundant power via DC and PoE.
Specifications
General
| Brand | AXIS |
|---|---|
| Form factor | Bullet |
| Product colour | White |
| Housing material | Aluminium/Polycarbonate (PC) |
| Type | IP security camera |
| Manual | Yes |
| IK code | IK10 |
| LED type | IR |
| Frame rate | 60 |
| PTZ control | Yes |
| Mounting kit | Yes |
| Night vision | Yes |
| Cloud-managed | Yes |
| Dynamic range | 120 |
| Mounting type | Pole clamp |
| Pixel counter | Yes |
| Video streaming | Yes |
| Progressive scan | Yes |
| Total megapixels | 2 |
| Alarm input/output | Yes |
| Focal length range | 10.8 - 28.2 |
| Infra-red wavelength | 850 |
| Minimum illumination | 0.01 |
| Text caption overlay | Yes |
| Night vision distance | 80 |
| Video motion detection | Yes |
| Maximum aperture number | 1.76 |
| Minimum aperture number | 1.7 |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness/White balance |
| Wide Dynamic Range (WDR) | Yes |
| Video compression formats | AV1/H.264/H.265/M-JPEG |
| Operating relative humidity (H-H) | 10 - 100 |
| Warranty | 60 months |
| EAN | 7331021090323 |
Display
| Maximum resolution | 1920 x 1080 |
|---|
Processor
| Processor model | ARTPEC-9 |
|---|---|
| Built-in processor | Yes |
Memory
| RAM capacity | 2048 |
|---|
Storage
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
|---|---|
| Built-in HDD | No |
| Storage temperature (T-T) | -40 - 65 |
| Network access storage (NAS) | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
Camera
| Flash memory | 8192 MB |
|---|---|
| Auto focus | Yes |
| Day/night mode | Yes |
| Video recording | Yes |
| Zoom capability | Yes |
| Image stabilizer | Yes |
| Camera pixel size | 2.9 |
| Number of cameras | 1 |
| Camera shutter speed | 1/37000 - 2 |
| Lens viewing angle, vertical | 16.5 - 6.3 |
| Lens viewing angle, horizontal | 29.4 - 11 |
Audio
| Audio system | 2-way |
|---|---|
| Microphone in | Yes |
| Audio system full duplex | Yes |
Ports
| Card reader integrated | Yes |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Terminal block port | Yes |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
Connectivity
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Connectivity technology | Wired |
| Networking standards | IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
Keyboard & controls
| Gain control type | Auto |
|---|
Battery & power
| Power consumption (max) | 12.95 W |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 10,12,15,16,24,28 |
Performance & capacities
| Operating temperature (T-T) | 0 – 40 – 60 °C |
|---|---|
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Infrared (IR) cut-off filter | Yes |
Features
| International Protection (IP) code | IP66, IP67 |
|---|---|
| LED indicators | Yes |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 |
| Placement supported | Outdoor |
| Quality of Service (QoS) support | Yes |
Dimensions & weight
| Weight | 1.38 kg |
|---|---|
| Product Net Weight | 1 kg |
