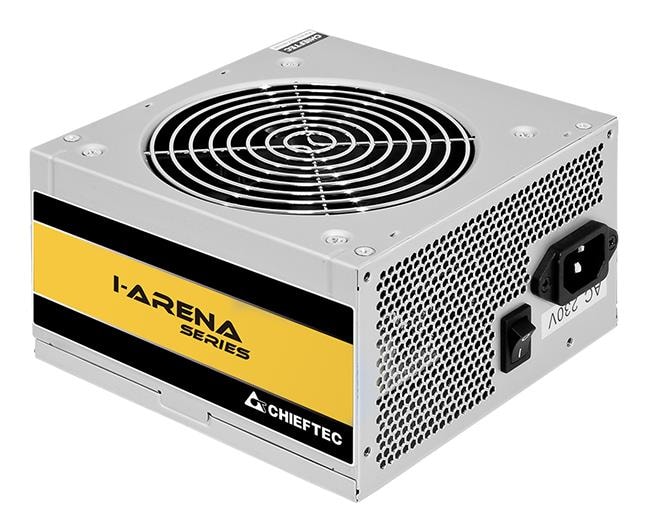

Chieftec GPA-700S 700W PS/2 Power Supply Silver
CHIEFTEC

Chieftec GPA-700S 700W PS/2 Power Supply Silver

  • CPU power cable length550
  • AC input voltage200 – 240 V
  • Cooling typeActive
  • Width140 mm
  • Motherboard power connector20+4 pin ATX
  • Package typeBox

The Chieftec GPA-700S delivers 700W of stable power for mid-range desktop PCs and servers. Built in PS/2 form factor, it's a straightforward, reliable choice for systems that need consistent performance without premium pricing.

  • 700W output handles standard multi-core CPUs and single graphics card setups with headroom
  • 120mm fan keeps thermals in check during extended work sessions
  • Non-modular design means simpler, proven construction with fewer connection points to fail
  • Wide voltage range (200–240V) works across different regions without adapters

Description

Steady power for everyday builds

Pick this PSU if you're building or upgrading a workhorse PC or small server and want dependable power at a sensible price point.

Specifications

General

BrandCHIEFTEC
Product colourSilver
PurposePC/Server
Efficiency80
ATX version2.3
Cabling typeNon-Modular
Fan diameter120
Fan locationTop
Number of fans1
Warranty24 months
EAN4710713233225

Processor

CPU power cable length550
CPU power connector (4+4 pin)Yes

Ports

Floppy disk drive connectorYes
Motherboard power connector20+4 pin ATX
Floppy drive power connector1
ATX power connector (20+4 pin)Yes
Number of SATA power connectors6
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power connectors (4-pin)2

Battery & power

AC input voltage200 – 240 V
AC input frequency47 – 63 Hz
Total power700
Power factor0.9
Input current5
Combined power (+5V)130
Combined power (+12V)648
Combined power (-12V)3.6
Combined power (+3.3V)130
Combined power (+5Vsb)12.5
Max output current (+5V)22
Max output current (+12V)50
Max output current (-12V)0.3
Power protection featuresOver voltage/Overload/Short circuit/Under voltage
Max output current (+3.3V)22
Max output current (+5Vsb)2.5
Motherboard power cable length500
Power Factor Correction (PFC) typeActive
Power supply unit (PSU) form factorPS/2
Peripheral (Molex) power cable length500/650/800

Performance & capacities

Cooling typeActive

Features

Package typeBox

Dimensions & weight

Width140 mm
Depth150 mm
Height87 mm
Weight1.44 kg
