DAHUA

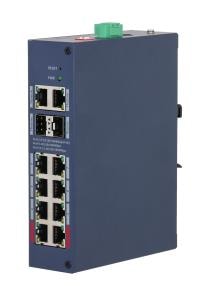

Dahua CHS4212-8GT-110 network switch, 8 PoE ports, 110 W, 2 SFP
- Switching capacity24
- Power consumption (max)117.2 W
- Operating temperature (T-T)0 – 30 – 65 °C
- Networking standardsIEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
- Switch typeManaged
- Width139.4 mm
- Power connectorDC-in jack
- Cables includedAC
- Type. managed, L2, cloud managed
- Ports. 10 × 10/100/1000 Mbit/s
- PoE ports. 8, 110 W in total
- SFP slots. 2
- Mounting. desktop or DIN rail
- Operating temperature. -30…65 °C
- Weight. 660 g
- Colour. blue
Description
The maker highlights: PoE standards 802.3af, 802.3at, 802.3bt and Hi-PoE, a network topology view, management from a mobile app and a dust-proof metal case that copes with a wide temperature range.
Specifications
General
| Brand | DAHUA |
|---|---|
| Form factor | Desktop |
| Model name | CHS4212-8GT-110 |
| Product colour | Blue |
| Housing material | Iron |
| Jumbo frames | 12288 |
| Cloud-managed | Yes |
| Rack mounting | No |
| Forwarding rate | 17.856 |
| System event log | Yes |
| DIN rail mounting | Yes |
| MAC address table | 8000 |
| Packet buffer memory | 8.4 |
| Web-based management | Yes |
| SFP module slots quantity | 2 |
| Mean time between failures (MTBF) | 810020 |
| Operating relative humidity (H-H) | 10 - 90 |
| Warranty | 36 months |
| EAN | 6939554981906 |
Storage
| Switching capacity | 24 |
|---|---|
| Storage temperature (T-T) | -40 - 85 |
| Storage relative humidity (H-H) | 5 - 95 |
Ports
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power connector | DC-in jack |
| Total Power over Ethernet (PoE) budget | 110 |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
Connectivity
| Networking standards | IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
|---|
Keyboard & controls
| Switch type | Managed |
|---|---|
| Reset button | Yes |
| Switch layer | L2 |
Battery & power
| Power consumption (max) | 117.2 W |
|---|---|
| Power source | DC |
| Input current | 2.5 - 2.1 |
| DC input voltage | 48 - 57 |
| Power supply included | Yes |
Performance & capacities
| Operating temperature (T-T) | 0 – 30 – 65 °C |
|---|
Features
| Cables included | AC |
|---|---|
| LED indicators | Yes |
| 10G support | No |
| Jumbo frames support | Yes |
Dimensions & weight
| Width | 139.4 mm |
|---|---|
| Depth | 171.8 mm |
| Height | 42 mm |
| Weight | 660 g |
| Product Net Weight | 0.66 kg |
