DAHUA

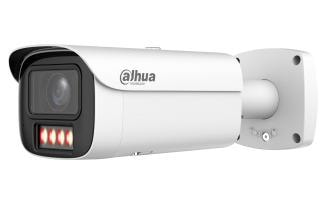

Dahua IPC-HFW5859E1-ZHE-IL IP camera, 8 MP, 2.7–12 mm, white
- Maximum resolution3840 x 2160
- Compatible memory cardsMicroSD (TransFlash)
- Power consumption (typical)3.7 W
- Operating temperature (T-T)0 – 40 – 60 °C
- Connectivity technologyWired
- Image stabilizer typeElectronic Image Stabilization (EIS)
- Audio input channels1.0
- Gain control typeAuto/Manual
- Resolution. 8 MP, 3840 × 2160
- Sensor. 1/1.8″ CMOS
- Lens. 2.7–12 mm
- Field of view. 113–47° H
- Night vision. up to 60 m
- Protection rating. IP67, IK10
- Power. PoE or 12 V DC
- Colour. white
Description
The maker highlights: Smart Dual Light for colour night video, AcuPick search, people counting and heat maps, and IP67 and IK10 protection.
Specifications
General
| Brand | DAHUA |
|---|---|
| Form factor | Bullet |
| Product colour | White |
| Housing material | Metal |
| Iris | Yes |
| Type | IP security camera |
| Manual | Yes |
| Mirror | Yes |
| IK code | IK10 |
| Bit rate | 3 - 16384 kbps |
| LED type | IR |
| Rotating | Yes |
| Pan range | 0 - 360 |
| Frame rate | 30 |
| Night vision | Yes |
| Dynamic range | 120 |
| Mounting type | Pole clamp |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of users | 20 |
| Video streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Progressive scan | Yes |
| Streaming method | Multicast |
| Tilt angle range | 0 - 90 |
| Total megapixels | 8 |
| Alarm input/output | Yes |
| Focal length range | 2.7 - 12 |
| Alarm input channels | 2 |
| Minimum illumination | 0.0004 |
| Alarm output channels | 1 |
| Night vision distance | 60 |
| Active tampering alarm | Yes |
| Detect distance (tele) | 189.6 |
| Detect distance (wide) | 83.4 |
| Video motion detection | Yes |
| Maximum aperture number | 1.8 |
| Motion detection system | SMD 4.0 |
| Observe distance (tele) | 75.8 |
| Observe distance (wide) | 33.4 |
| Identify distance (tele) | 19 |
| Identify distance (wide) | 8.3 |
| People counting function | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Recognize distance (tele) | 37.9 |
| Recognize distance (wide) | 16.7 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Number of illumination LEDs | 4 |
| Scene self-adaptation (SSA) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Human and vehicle targets classification | Yes |
| Warranty | 36 months |
| EAN | 6937552412880 |
Display
| Maximum resolution | 3840 x 2160 |
|---|
Storage
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Maximum memory card size | 1000 GB |
| Built-in HDD | No |
| Storage temperature (T-T) | -40 - 60 |
| Network access storage (NAS) | Yes |
Camera
| Image stabilizer type | Electronic Image Stabilization (EIS) |
|---|---|
| Day/night mode | Yes |
| Video recording | Yes |
| Image stabilizer | Yes |
| Number of lenses | 1 |
| Number of cameras | 1 |
| Camera pan control | Yes |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Camera shutter speed | 1/3 - 1/100000 |
| Closest focusing distance | 0.13 |
| Lens viewing angle, diagonal | 133 - 53 |
| Lens viewing angle, vertical | 60 - 23 |
| Lens viewing angle, horizontal | 113 - 47 |
| Lens distortion correction (LDC) | Yes |
Audio
| Built-in microphone | Yes |
|---|---|
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
Ports
| Card reader integrated | Yes |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Ethernet interface type | Fast Ethernet |
| Power consumption (Power over Ethernet (PoE)) | 5 |
| Power consumption (Power over Ethernet (PoE)) (max) | 16.1 |
Connectivity
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Connectivity technology | Wired |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Security algorithms | 256-bit AES/SSL/TLS |
| Supported network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
Software & security
| Mobile operating systems supported | Android/iOS |
|---|---|
| HTTPS encryption | Yes |
| Management software | DSS, DMSS, DoLynk Care |
Keyboard & controls
| Gain control type | Auto/Manual |
|---|
Battery & power
| Power consumption (typical) | 3.7 W |
|---|---|
| Power consumption (max) | 12.9 W |
| Power source type | PoE, DC |
| DC output voltage | 12 |
Performance & capacities
| Operating temperature (T-T) | 0 – 40 – 60 °C |
|---|---|
| Noise reduction | Yes |
| Angle of rotation | 360 |
| Image rotation angles | 270 |
| Noise reduction technology | 3D noise reduction |
| Signal-to-Noise Ratio (SNR) | 56 |
Features
| International Protection (IP) code | IP67 |
|---|---|
| Protection features | Dustproof/Waterproof |
| Smart IR | Yes |
| Sensor type | CMOS |
| Browser supported | IE 11+, Chrome 102+, Firefox 88+ |
| Optical sensor size | 1/1.8 |
| Placement supported | Outdoor |
| Smart search function | Yes |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| Quality of Service (QoS) support | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Intrusion/People counting/Tripwire |
Dimensions & weight
| Width | 96.7 mm |
|---|---|
| Height | 94.9 mm |
| Weight | 1.09 kg |
| Product Net Weight | 1.09 kg |
| Length | 279.8 |
