DAHUA

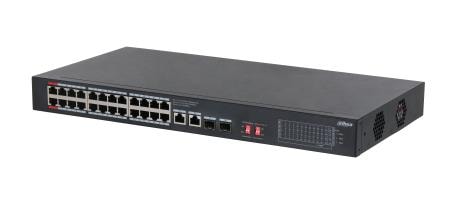

Dahua S3228-24GT-375 network switch, 24 PoE ports, 360 W, rackmount
- Switching capacity52
- Power consumption (max)400 W
- Operating temperature (T-T)0 – 10 – 55 °C
- Switch typeUnmanaged
- Width440 mm
- Ethernet LAN data rates10,100,1000
- Type. unmanaged
- PoE ports. 24 × 10/100/1000 Mbit/s, 360 W in total
- PoE per port. up to 90 W (red ports)
- Uplink ports. 2 × RJ-45, 2 × SFP
- Power. 100–240 V AC
- Dimensions (W × D × H). 440 × 220 × 44 mm
- Weight. 2660 g
- Colour. black
Description
The maker highlights: PoE Watchdog reboots cameras that hang, PoE reaches up to 250 m, and ports 1–8 can act as VIP ports with priority traffic.
Specifications
General
| Brand | DAHUA |
|---|---|
| Model name | S3228-24GT-375 |
| Product colour | Black |
| Housing material | Steel |
| Jumbo frames | 15 |
| Rack mounting | Yes |
| Forwarding rate | 41.66 |
| MAC address table | 8000 |
| Packet buffer memory | 4 |
| Installed SFP modules quantity | 2 |
| Operating relative humidity (H-H) | 10 - 90 |
| Warranty | 36 months |
| EAN | 6923172531018 |
Storage
| Switching capacity | 52 |
|---|---|
| Storage temperature (T-T) | -40 - 75 |
| Storage relative humidity (H-H) | 5 - 95 |
Ports
| Ethernet LAN data rates | 10,100,1000 |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 360 |
| Power over Ethernet (PoE) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
Connectivity
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
|---|
Keyboard & controls
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Switching optical modules type | Gigabit Ethernet |
Battery & power
| Power consumption (max) | 400 W |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 |
| Power source | AC |
| Input current | 7 |
| Power supply included | Yes |
Performance & capacities
| Operating temperature (T-T) | 0 – 10 – 55 °C |
|---|
Features
| Jumbo frames support | Yes |
|---|
Dimensions & weight
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 2.66 kg |
