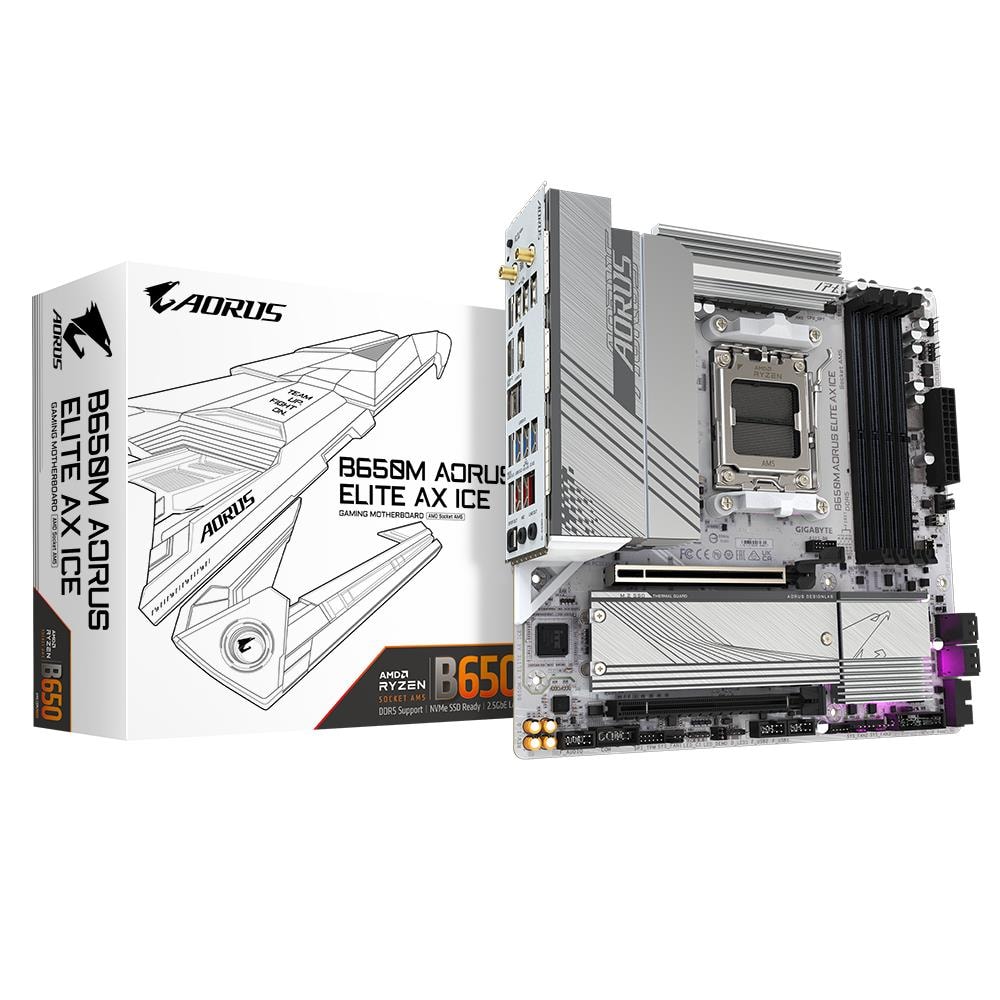

Gigabyte B650M Aorus Elite AX Ice motherboard, AM5, Micro-ATX, Wi-Fi 6E
GIGABYTE

Gigabyte B650M Aorus Elite AX Ice motherboard, AM5, Micro-ATX, Wi-Fi 6E

  • Maximum resolution4096 x 2304
  • Processor manufacturerAMD
  • Maximum internal memory256 GB
  • Number of HDDs supported4
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10
  • Top Wi-Fi standardWi-Fi 6E (802.11ax)
  • Audio chipRealtek ALC897

The Gigabyte B650M Aorus Elite AX Ice is a white Micro-ATX motherboard for AMD Ryzen 7000, 8000 and 9000 Series processors in the AM5 socket. Four DDR5 slots take up to 256 GB (up to 8000 MHz overclocked), there is one PCIe 5.0 and one PCIe 4.0 M.2 slot for SSDs, and 2.5 Gbit/s Ethernet, Wi-Fi 6E and Bluetooth 5.3 provide connectivity.

  • CPU socket. AM5
  • Chipset. AMD B650
  • Form factor. Micro-ATX
  • Memory. DDR5, 4 slots, up to 256 GB
  • M.2 slots. 2 (1 × PCIe 5.0, 1 × PCIe 4.0)
  • Graphics card slot. PCIe 4.0
  • Networking. 2.5 Gbit/s Ethernet, Wi-Fi 6E, Bluetooth 5.3
  • Colour. white

Description

The maker highlights: a twin 12+2+2 phase digital VRM, an M.2 Thermal Guard heatsink, screwless quick-release PCIe and M.2 mounting (EZ-Latch), front USB-C at 20 Gb/s and rear USB-C at 10 Gb/s.

Specifications

General

BrandGIGABYTE
Product colourWhite
HDCPYes
Line-inYes
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size256
Clear CMOS jumperYes
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage/Water cooling
Number of memory slots4
Motherboard form factormicro ATX
Number of M.2 (M) slots2
1st M.2 largest key size25110
2nd M.2 largest key size25110
Number of RGB LED pin headers5
PCI Express x16 (Gen 4.x) slots2
Products per shipping (inner) case1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty36 months
EAN4719331859336

Display

Maximum resolution4096 x 2304

Processor

Processor manufacturerAMD
Motherboard chipsetAMD B650
Processor socketSocket AM5
CPU fan connectorYes
Motherboard chipset familyAMD
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Number of CPU fan connectors2

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot64

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III

Graphics

Discrete graphics supportYes

Audio

Audio chipRealtek ALC897
Audio output channels7.1
Digital audio optical out1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerRealtek RTL8125
S/PDIF out portYes
USB 2.0 connectors2
12V power connectorYes
DisplayPort version1.4
Serial port headers1
WiFi-AP antenna jack2
DisplayPorts quantity1
Front panel connectorYes
Ethernet interface type2.5 Gigabit Ethernet
USB 3.2 Gen 2x2 connectors1
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of water pump connectors2
Number of chassis fan connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1

Connectivity

Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Bluetooth version5.3
Antenna includedYes

Software & security

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 10 x64/Windows 11 x64

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Power source typeATX
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10
Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000
Supported memory clock speed (max)8000

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width244 mm
Depth244 mm
Height35 mm
Product Net Weight1.9 kg
