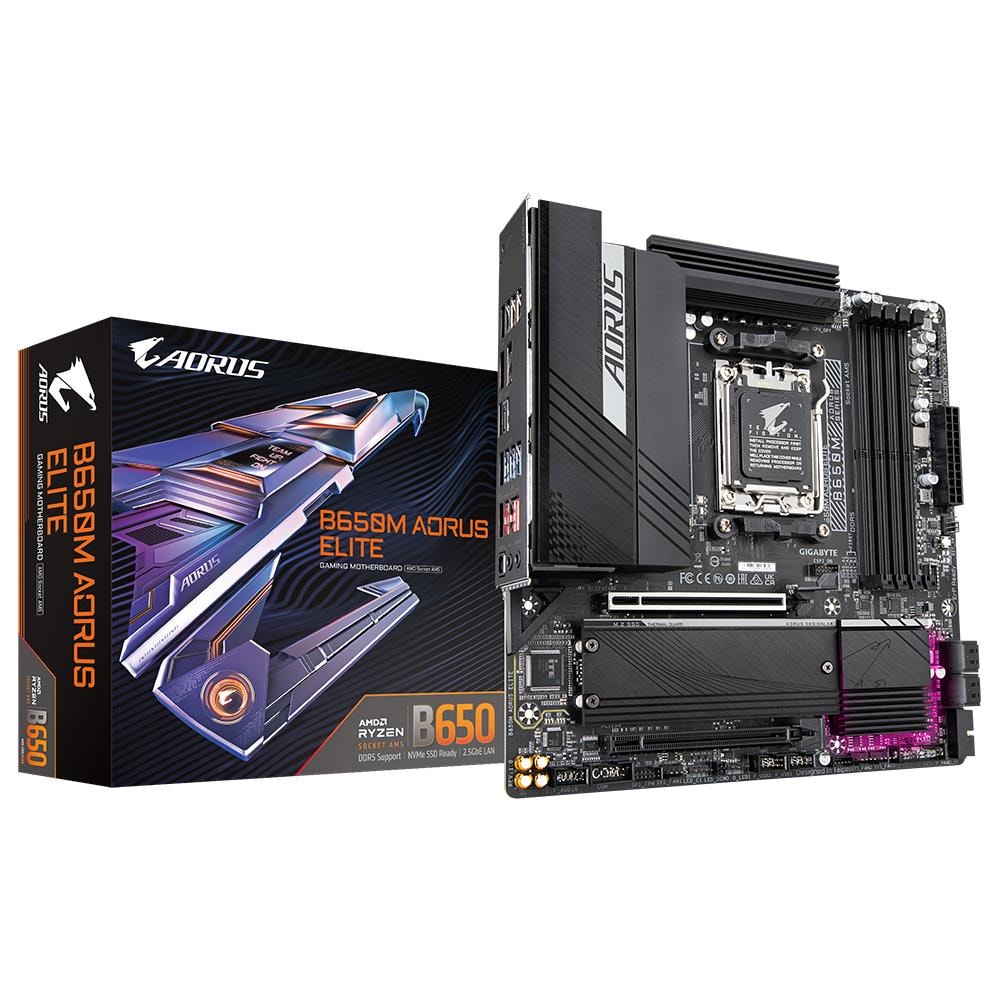

Gigabyte B650M Aorus Elite motherboard, AM5, Micro-ATX, DDR5

The Gigabyte B650M Aorus Elite is an Aorus-series Micro-ATX motherboard for AMD Ryzen 7000, 8000 and 9000 Series processors in the AM5 socket, without Wi-Fi. Four DDR5 slots take up to 256 GB (up to 8000 MHz overclocked), there is one PCIe 5.0 and one PCIe 4.0 M.2 slot for SSDs, and 2.5 Gbit/s Ethernet handles the network.

The maker highlights: a twin 12+2+2 phase digital VRM, an M.2 Thermal Guard heatsink, screwless quick-release PCIe and M.2 mounting (EZ-Latch), front USB-C at 20 Gb/s, and HDMI and DisplayPort outputs.

• CPU socket. AM5
• Chipset. AMD B650
• Form factor. Micro-ATX
• Memory. DDR5, 4 slots, up to 256 GB
• M.2 slots. 2 (1 × PCIe 5.0, 1 × PCIe 4.0)
• Graphics card slot. PCIe 4.0
• Networking. 2.5 Gbit/s Ethernet, no Wi-Fi
• Colour. black
• Manufacturer code. B650M AORUS ELITE 1.3
• Warranty. 36 months
