Reliable power for your next build
Grab this if you're building a new PC, upgrading from an older PSU, or need a trusted workhorse that won't bottleneck your components.
GIGABYTE

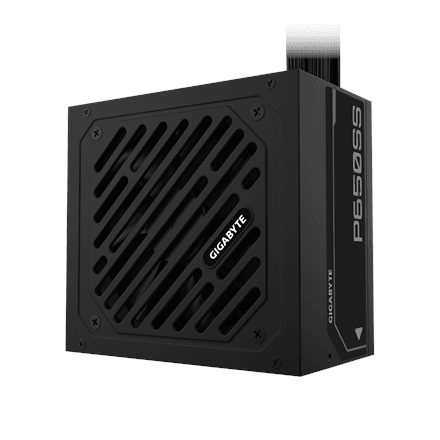

GIGABYTE GP-P650SS ICE 650W 80 PLUS Silver PSU
- CPU power cable length600
- AC input voltage155 – 240 V
- Cooling typeActive
- Width140 mm
- Motherboard power connector20+4 pin ATX
- Package typeBox
- 650W capacity with 80 PLUS Silver efficiency handles modern multi-core CPUs and graphics cards without strain
- 120mm fan keeps temperatures in check and runs quietly during everyday use
- 100,000-hour MTBF rating means this unit is built to last through years of solid performance
- White finish and compact ATX form factor fit neatly into most tower cases
Description
Specifications
General
| Brand | GIGABYTE |
|---|---|
| Model name | P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug |
| Product colour | White |
| Purpose | PC |
| ATX version | 3.0 |
| Cabling type | Non-Modular |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| Mean time between failures (MTBF) | 100000 |
| Warranty | 36 months |
| EAN | 4719331554927 |
Processor
| CPU power cable length | 600 |
|---|---|
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
Ports
| Floppy disk drive connector | Yes |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (20+4 pin) | Yes |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Keyboard & controls
| On/off switch | Yes |
|---|
Battery & power
| AC input voltage | 155 – 240 V |
|---|---|
| AC input frequency | 50/60 |
| Total power | 650 |
| Power factor | 0.9 |
| Input current | 6.3 |
| Combined power (+5V) | 100 |
| 80 PLUS certification | 80 PLUS Silver |
| Combined power (+12V) | 649.2 |
| Combined power (-12V) | 3.6 |
| Combined power (+3.3V) | 100 |
| Combined power (+5Vsb) | 15 |
| SATA power cable length | 120/500 |
| Max output current (+5V) | 20 |
| Max output current (+12V) | 54.1 |
| Max output current (-12V) | 0.3 |
| Power protection features | Over power/Overcharge/Short circuit/Under voltage |
| Max output current (+3.3V) | 20 |
| Max output current (+5Vsb) | 3 |
| Power Good signal delay range | 100 - 150 |
| Motherboard power cable length | 600 |
| PCI Express power cable length | 650 |
| Power Factor Correction (PFC) type | Active |
| Power supply unit (PSU) form factor | ATX |
| Peripheral (Molex) power cable length | 120/500 |
Performance & capacities
| Cooling type | Active |
|---|
Features
| Package type | Box |
|---|---|
| Bearing technology | FDB |
Dimensions & weight
| Width | 140 mm |
|---|---|
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.23 kg |
