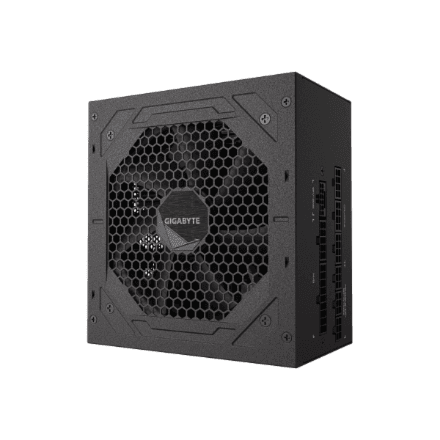

GIGABYTE UD750GM PG5 ICE 750W 80 PLUS Gold PSU
GIGABYTE

GIGABYTE UD750GM PG5 ICE 750W 80 PLUS Gold PSU

  • CPU power cable length650
  • AC input voltage100 – 240 V
  • Cooling typeActive
  • Width150 mm
  • Number of EPS connectors2
  • Package typeBox

The GIGABYTE UD750GM PG5 ICE is a fully-modular 750W power supply built for systems that demand stable, efficient power delivery. With 80 PLUS Gold certification, you get real energy savings that add up over time—no wasted power, no inflated electricity bills.

  • Fully-modular cables mean a cleaner build, easier cable management, and genuine airflow improvements inside your case
  • 120mm fan with active PFC keeps temperatures controlled while running whisper-quiet during everyday use
  • Gold-rated efficiency means more of your wall power reaches your components, less heat escaping into your room
  • 100,000-hour MTBF rating signals this unit is engineered for the long haul

Description

Built to last, designed to deliver

Pick this one if you're building a mid-range gaming rig, workstation, or upgrade that won't settle for cheap power. The white finish pairs well with modern case designs, and the modular design saves real time during installation.

Specifications

General

BrandGIGABYTE
Model nameUD750GM PG5 ICE
Product colourWhite
PurposePC
Hold time16
Efficiency90
ATX version3.1
Cabling typeFully-Modular
Fan diameter120
Number of fans1
Mean time between failures (MTBF)100000
Warranty36 months
EAN4719331556310

Processor

CPU power cable length650
CPU power connector (4+4 pin)Yes

Ports

PCI Express connectorYes
Number of EPS connectors2
Motherboard power connector20+4 pin ATX
Floppy drive power connector1
Number of SATA power connectors8
PCI Express power connectors (6+2 pin)4
PCI Express power connectors (12+4 pin)1
Peripheral (Molex) power connectors (4-pin)3
PCI Express power connectors (12+4 pin) cable length700

Keyboard & controls

On/off switchYes

Battery & power

AC input voltage100 – 240 V
AC input frequency50/60
Total power750
Power factor0.9
Input current12 - 6.5
Combined power (+5V)105
80 PLUS certification80 PLUS Gold
Combined power (+12V)750
Combined power (-12V)3.6
Combined power (+3.3V)105
Combined power (+5Vsb)15
Max output current (+5V)20
Max output current (+12V)62.5
Max output current (-12V)0.3
Power protection featuresOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Max output current (+3.3V)20
Max output current (+5Vsb)3
Motherboard power cable length610
PCI Express power cable length600
Power Factor Correction (PFC) typeActive
Power supply unit (PSU) form factorATX

Performance & capacities

Cooling typeActive

Features

Package typeBox
Bearing technologyHYB

Dimensions & weight

Width150 mm
Depth140 mm
Height86 mm
Weight2.34 kg
