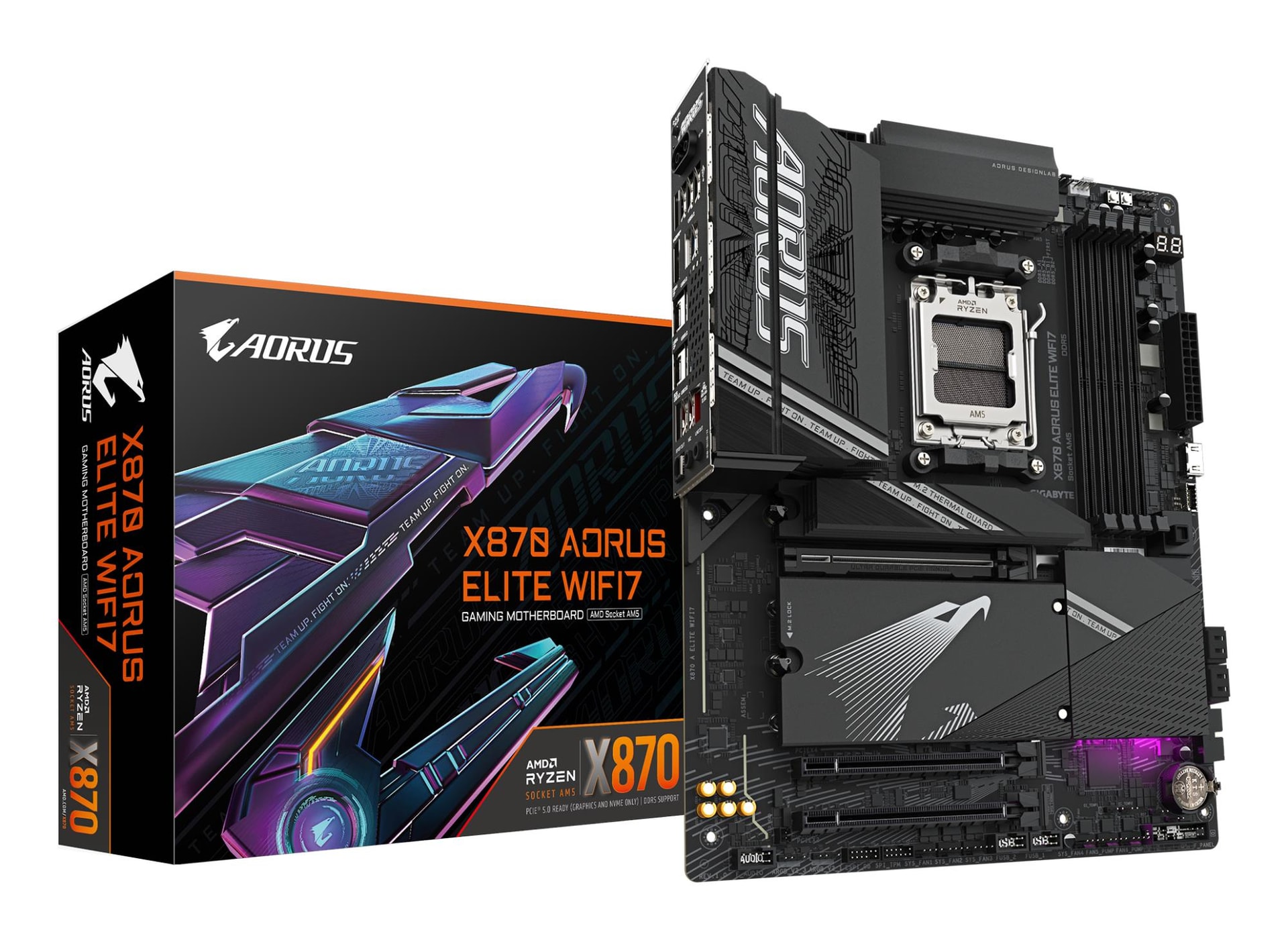

GIGABYTE X870 Elite WiFi ATX Mainboard AM5
GIGABYTE

GIGABYTE X870 Elite WiFi ATX Mainboard AM5

  • Processor manufacturerAMD
  • Maximum internal memory256 GB
  • Number of HDDs supported4
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10
  • Wi-Fi standardsWi-Fi 7 (802.11be)
  • Audio chipRealtek ALC1220
  • Windows operating systems supportedWindows 11 x64

The GIGABYTE X870 Elite WiFi is a full-size ATX motherboard built for AMD Ryzen 7000-series CPUs on Socket AM5. It brings solid performance and modern connectivity at a genuinely competitive price point, making it an excellent foundation for a mid-to-high-end build without overspending.

  • Four DDR5 memory slots for up to 256 GB of fast RAM – future-proof your system and handle multitasking with ease
  • Four M.2 slots give you flexibility to add NVMe storage where you need it, whether for OS drives or gaming libraries
  • Integrated WiFi 6E keeps your rig connected without running cables, and full ATX layout means plenty of space for expansion

Description

Built for speed and connectivity

Pick this board if you're upgrading to a new-gen Ryzen chip and want a stable, feature-rich platform that won't force you to choose between connectivity and value.

Specifications

General

BrandGIGABYTE
Product colourBlack
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size256
Clear CMOS jumperYes
Headphone outputs1
ECC сompatibilityNon-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage
PCI Express x4 slots2
Number of memory slots4
Motherboard form factorATX
Number of M.2 (M) slots4
1st M.2 largest key size25110
2nd M.2 largest key size22110
3rd M.2 largest key size22110
4th M.2 largest key size22110
Number of RGB LED pin headers4
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Products per shipping (inner) case1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation5.0
4th M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty36 months
EAN4719331864811

Processor

Processor manufacturerAMD
Motherboard chipsetAMD X870
Processor socketSocket AM5
CPU fan connectorYes
Motherboard chipset familyAMD
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Number of CPU fan connectors2
Maximum internal memory supported by processor256

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot64

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported8
Supported storage drive interfacesM.2, SATA III

Graphics

On-board graphics cardNo

Audio

Audio chipRealtek ALC1220
Microphone inYes
Audio output channels7.1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerRealtek RTL8125
S/PDIF out portYes
USB 2.0 connectors2
DisplayPort version1.4
WiFi-AP antenna jack2
DisplayPorts quantity2
Front panel connectorYes
Ethernet interface type2.5 Gigabit Ethernet
USB 3.2 Gen 2x2 connectors1
EPS power connector (8-pin)Yes
USB4 Gen 2x2 ports quantity2
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of water pump connectors3
Number of chassis fan connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of EPS power connectors (8-pin)2

Connectivity

Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
Top Wi-Fi standardWi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7925
BluetoothYes
Bluetooth version5.4
Antenna includedYes

Software & security

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 11 x64

Keyboard & controls

Clear CMOS buttonYes

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10
Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
Supported memory clock speed (max)8200

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Supported memory module capacities16GB/1GB/24GB/2GB/32GB/4GB/8GB
Parallel processing technology supportNot supported

Dimensions & weight

Width305 mm
Depth244 mm
Height35 mm
Weight2.4 kg
