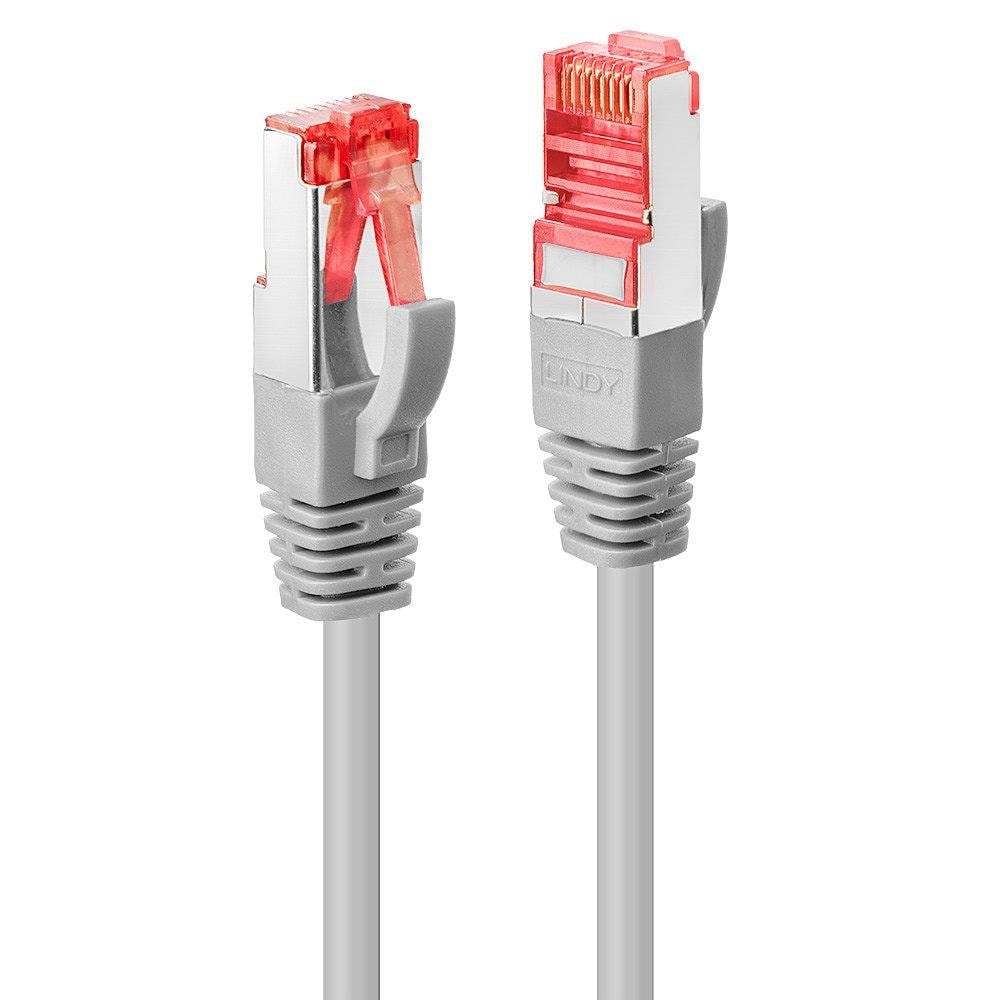

Lindy CAT6 S/FTP patch cable, 3 m, grey
LINDY

Lindy CAT6 S/FTP patch cable, 3 m, grey

  • Storage temperature (T-T)-20 - 75
  • Cable length3 m
  • Operating temperature (T-T)0 – 10 – 60 °C
  • Product Net Weight0.06 kg
  • Connector 1RJ-45
  • Package typePolybag

The Lindy 47705 is a 3 m CAT6 patch cable with S/FTP shielding: each twisted pair is foiled and the whole cable is braided. It supports frequencies up to 250 MHz and suits Gigabit Ethernet or AV extension. The cables are made and tested to ISO/IEC 11801 and packed individually.

  • Category. CAT6, class E
  • Shielding. S/FTP
  • Frequency. up to 250 MHz
  • Connectors. RJ45 – RJ45, shielded
  • Conductors. copper, AWG 27
  • Outer diameter. 6.2 mm
  • Min bend radius. 74 mm
  • Colour. grey

Description

The maker highlights: gold-plated contacts, shielded plugs and a robust snagless boot that stops the latch breaking when you plug in or unplug.

Specifications

General

BrandLINDY
Model name3m Cat.6 S/FTP Network Cable, Grey
Product colourGrey
Category6
Frequency250
Cable classE
AWG wire size27
Cable standardCat6
Outer diameter6.2
Cable shieldingS/FTP (S-STP)
Bend radius (min)74
Conductor materialCopper
Warranty120 months
EAN4002888477055

Storage

Storage temperature (T-T)-20 - 75

Ports

Connector 1RJ-45
Connector 2RJ-45
Jacket materialPolyvinyl chloride (PVC)
Connector 1 genderMale
Connector 2 genderMale
Connector shieldingYes
Connector shield materialAluminium
Connector contacts platingNickel/Gold
Connector 1 dimensions (WxDxH)11.6 x 22.8 x 8.3
Connector 2 dimensions (WxDxH)11.6 x 22.8 x 8.3

Battery & power

Cable length3 m

Performance & capacities

Operating temperature (T-T)0 – 10 – 60 °C

Features

Package typePolybag
Cabling technology10/100/1000Base-T(X)

Dimensions & weight

Product Net Weight0.06 kg
