Power, ports and flexibility in one small case
Best for home labs, small offices and server rooms that need a wired router with serious routing power. Note that it has no Wi-Fi, so pair it with an access point if you need wireless.
MikroTik

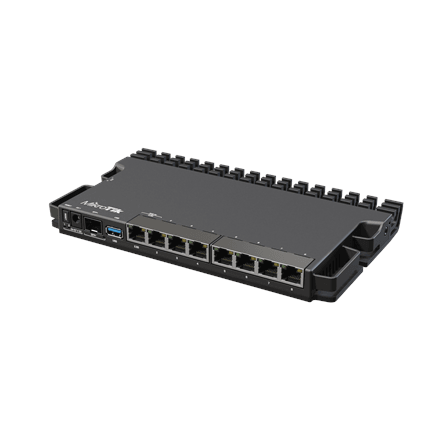

MikroTik RB5009UG+S+IN Router, Quad-Core 1.4 GHz, 10G SFP+
- Processor model88F7040
- Internal memory1000 MB
- Total storage capacity1 GB
- Voltage(PoE in input Voltage) 24-57 V
- Operating temperature (T-T)-40°C to 60°C °C
- Antennas quantityNo antenna
- Software typeRouterOS (v7 only)
- Net weight0.454 kg
- 9 wired ports: seven Gigabit Ethernet, one 2.5G Ethernet and one 10G SFP+, all linked to the switch-chip over a 10 Gbps full-duplex line.
- Three ways to power it: PoE-in on port #1 (802.3af/at), the DC jack or the 2-pin terminal. A 24V 1.5A adapter is included.
- Runs RouterOS v7: 1 GB DDR4 RAM, 1 GB NAND storage and a USB 3.0 port for extras. No battery is built in.
- Rack-friendly: with the mounting accessories, four units fit in a single 1U space. The case acts as a heat-sink, and the operating range is -40°C to 60°C.
Description
Specifications
General
| Brand | MikroTik |
|---|---|
| Warranty | 12 months |
| EAN | 4752224007148 |
Processor
| Processor model | 88F7040 |
|---|---|
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
| CPU frequency | 350-1400 (auto) MHz |
Memory
| Internal memory | 1000 MB |
|---|---|
| Memory type | NAND |
Storage
| Total storage capacity | 1 GB |
|---|---|
| Storage capacity | 1000 MB |
Ports
| Ethernet LAN (RJ-45) ports | 7 |
|---|---|
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| SFP+ ports quantity | 1 |
| USB ports quantity | 1 |
| USB version | USB 3.0 type A |
Connectivity
| Wi-Fi | No |
|---|---|
| Antennas quantity | No antenna |
| Mesh Support | No |
| Mobile Broadband | No mobile broadband |
| MU-MiMO | No |
| PoE in | 802.3af/at |
| Wi-Fi band | No Wi-Fi |
Software & security
| Software type | RouterOS (v7 only) |
|---|
Keyboard & controls
| Reset button | Yes |
|---|
Battery & power
| Voltage | (PoE in input Voltage) 24-57 V |
|---|---|
| AC adapter included | Yes (24V 1.5A power adapter) |
| Power consumption (max) | 20 W |
Performance & capacities
| Operating temperature (T-T) | -40°C to 60°C °C |
|---|
Features
| Certification | CE, EAC, ROHS |
|---|---|
| Other features | Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. |
Dimensions & weight
| Net weight | 0.454 kg |
|---|
