MONITOR ACC DESK MOUNT 17-27"/DS70-750BL1 NEOMOUNTS

Panel mounting interface100 x 100/75 x 75
Maximum weight capacity7
Angle of rotation360
Width117 mm
Package net weight3100

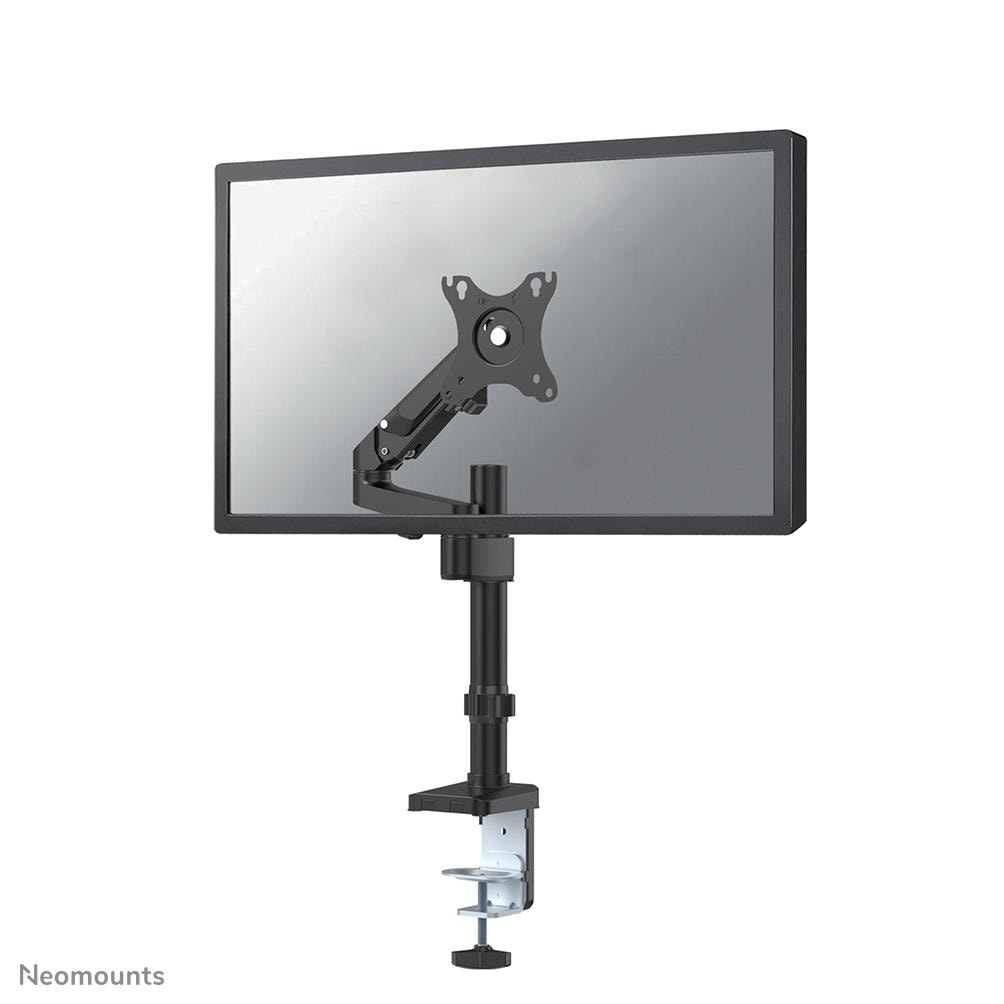

The Neomounts DS70-750BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position. The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

Specifications

General

Brand	NEOMOUNTS
Product colour	Black
Housing material	Steel
Mounting	Clamp/Grommet
Rotating	Yes
Swivelling	Yes
Orientation	Landscape/Portrait
Pivot angle	-180 - 180
Mounting type	Desk
Minimum weight	2
Tilt adjustment	Yes
Adjustable depth	Yes
Cable management	Yes
Tilt angle range	-45 - 45
Height adjustment	Yes
Maximum VESA mount	100 x 100
Minimum VESA mount	75 x 75
Swivel angle range	-90 - 90
Desk thickness (max)	85
Desk thickness (min)	10
Depth adjustment range	0 - 440
Height adjustment type	Gas spring
Width adjustment range	0 - 378
Height adjustment range	73 - 481
Products per pallet (EU)	96
Master (outer) case width	495
Master (outer) case height	365
Master (outer) case length	380
Master (outer) case net weight	15200
Master (outer) case gross weight	19500
Products per master (outer) case	6
Warranty	60 months
EAN	8717371449193

Display

Panel mounting interface	100 x 100/75 x 75
Maximum screen size	27
Minimum screen size	17
Number of displays supported	1
Maximum weight capacity (per display)	7
Maximum weight capacity (per curved/ultra-wide display)	7

Storage

Maximum weight capacity	7

Performance & capacities

Angle of rotation	360

Features

Package net weight	3100

Dimensions & weight

Width	117 mm
Depth	440 mm
Height	679 mm
Weight	2.54 kg
