MONITOR ACC DESK MOUNT 17-42"/DS70-450WH1 NEOMOUNTS
- Panel mounting interface100 x 100/75 x 75
- Maximum weight capacity15
- Angle of rotation360
- Width120 mm
- Package net weight5100
Description

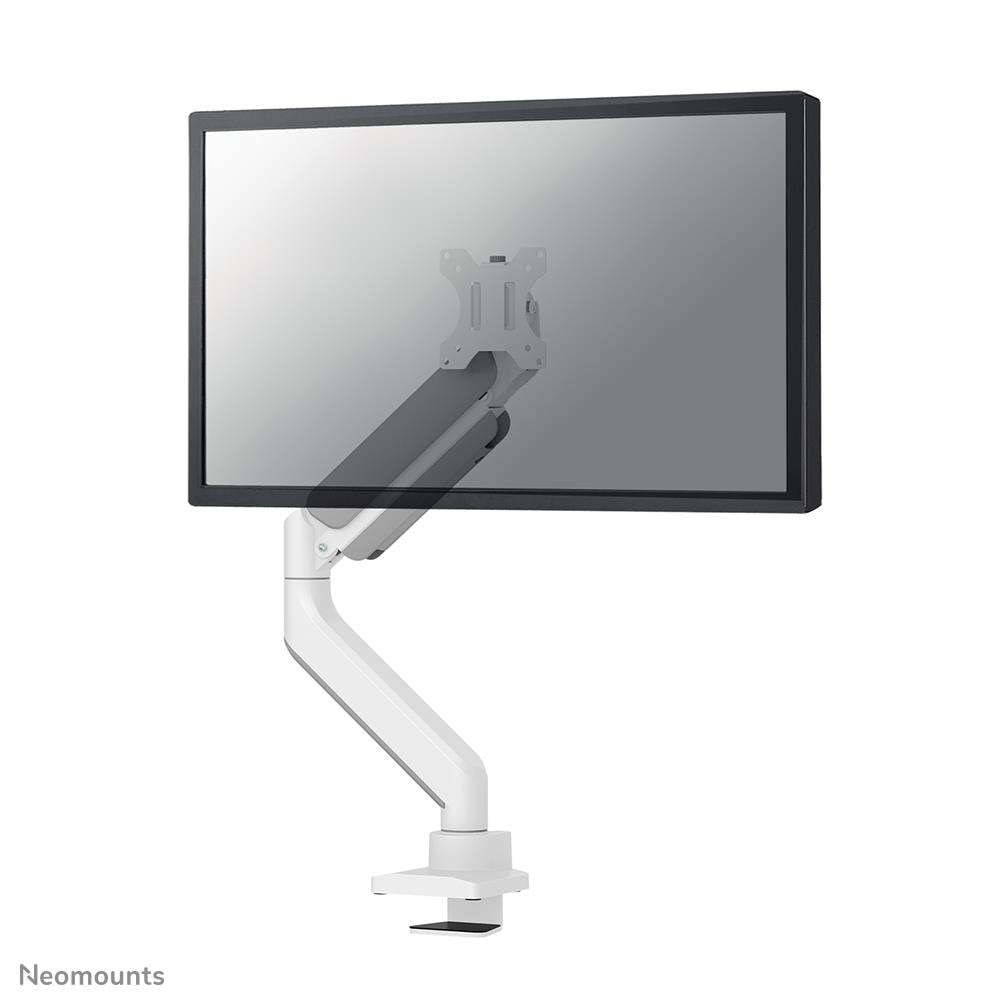

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.
The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specifications
General
| Brand | NEOMOUNTS |
|---|---|
| Product colour | White |
| Housing material | Steel |
| Mounting | Clamp/Grommet |
| Rotating | Yes |
| Swivelling | Yes |
| Pivot angle | -180 - 180 |
| Mounting kit | Yes |
| Swivel angle | 180 |
| Mounting type | Desk |
| Minimum weight | 1 |
| Tilt adjustment | Yes |
| Adjustable depth | Yes |
| Cable management | Yes |
| Tilt angle range | -45 - 45 |
| Width adjustment | 920 |
| Height adjustment | Yes |
| Maximum VESA mount | 100 x 100 |
| Minimum VESA mount | 75 x 75 |
| Swivel angle range | -90 - 90 |
| Desk thickness (max) | 45 |
| Desk thickness (min) | 10 |
| Depth adjustment range | 54 - 511 |
| Height adjustment type | Gas spring |
| Width adjustment range | 0 - 920 |
| Height adjustment range | 261 - 555 |
| Products per pallet (EU) | 64 |
| Master (outer) case width | 460 |
| Distance to the wall (max) | 568 |
| Distance to the wall (min) | 108 |
| Master (outer) case height | 580 |
| Master (outer) case length | 275 |
| Master (outer) case net weight | 18400 |
| Master (outer) case gross weight | 20500 |
| Products per master (outer) case | 4 |
| Warranty | 60 months |
| EAN | 8717371449483 |
Display
| Panel mounting interface | 100 x 100/75 x 75 |
|---|---|
| Maximum screen size | 42 |
| Minimum screen size | 17 |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 15 |
| Maximum weight capacity (per curved/ultra-wide display) | 11 |
Storage
| Maximum weight capacity | 15 |
|---|
Performance & capacities
| Angle of rotation | 360 |
|---|
Features
| Package net weight | 5100 |
|---|
Dimensions & weight
| Width | 120 mm |
|---|---|
| Depth | 568 mm |
| Height | 653 mm |
| Weight | 3.98 kg |
