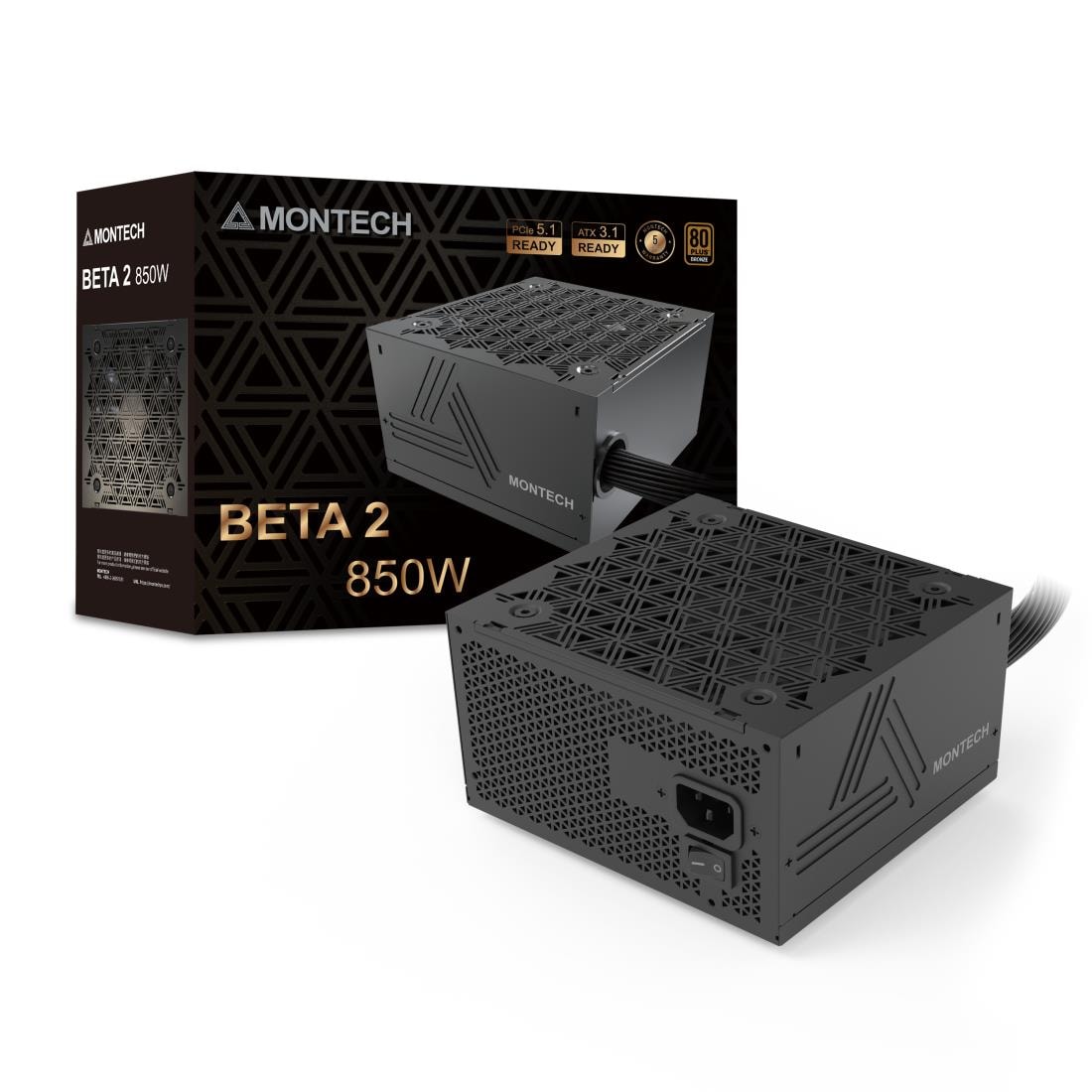

Montech BETA 2 power supply, 850 W, 80 PLUS Bronze
MONTECH

Montech BETA 2 power supply, 850 W, 80 PLUS Bronze

The Montech BETA 2 850W is an 80 PLUS Bronze power supply built to the ATX 3.1 standard, with PCIe 5.1 graphics card support on the 850 W model. DC-to-DC technology keeps voltages stable under load, and the main capacitor is Japanese, rated for 105 °C. The cables are fixed.

  • Power. 850 W
  • Certification. 80 PLUS Bronze
  • Standard. ATX 3.1, PCIe 5.1
  • Cables. fixed (non-modular)
  • Fan. 120 mm, hydraulic bearing (HDB)
  • Graphics card power. 4 × PCIe 6+2
  • SATA power connectors. 6
  • Colour. black

Specifications

General

BrandMONTECH
Model nameBETA 2
Product colourBlack
PurposePC
ATX version3.1
Cabling typeNon-Modular
Fan diameter120
IlluminationNo
Number of fans1
Doesn't containCadmium/Lead/Mercury
Warranty120 months
EAN4710562748628

Processor

CPU power connector (4+4 pin)Yes

Ports

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express power connectors (16-pin)1
PCI Express power connectors (6+2 pin)4
Peripheral (Molex) power connectors (4-pin)4

Keyboard & controls

On/off switchYes

Battery & power

AC input voltage100 – 240 V
AC input frequency50/60
Total power850
Input current12
Combined power (+5V)80
80 PLUS certification80 PLUS Bronze
Combined power (+12V)849.6
Combined power (-12V)3.6
Combined power (+3.3V)80
Combined power (+5Vsb)15
Max output current (+5V)13
Max output current (+12V)70.8
Max output current (-12V)0.3
Power protection featuresOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Max output current (+3.3V)13
Max output current (+5Vsb)3
Number of SATA power cables2
Power supply unit (PSU) form factorATX

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Cooling typeActive

Features

Package typeBox
Bearing technologyHDB

Dimensions & weight

Width150 mm
Depth140 mm
Height86 mm
Product Net Weight1.7 kg
