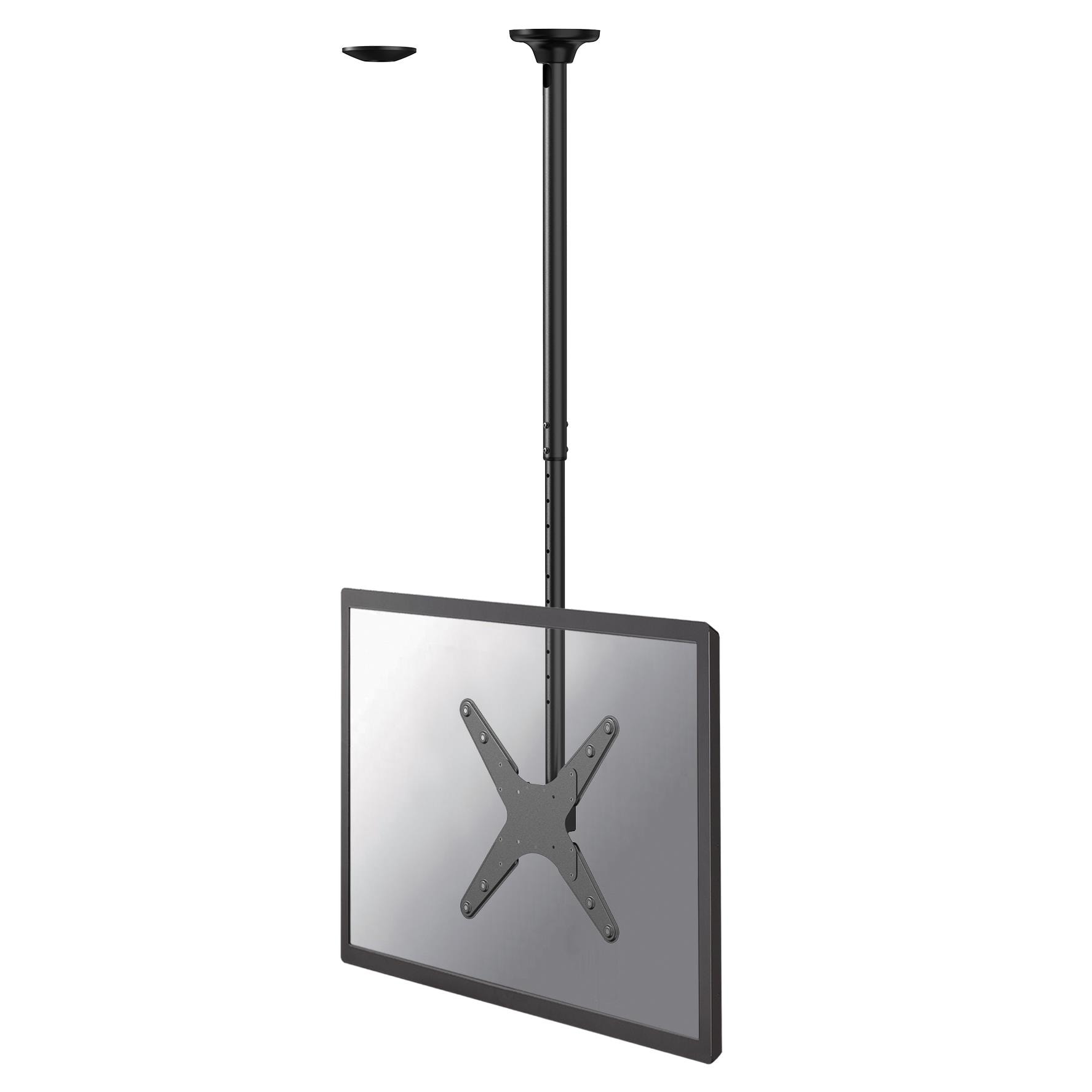

Neomounts FPMA-C340BLACK TV ceiling mount, 32–75″, height 1060–1560 mm

Maximum screen size75
Maximum weight capacity50
Angle of rotation6
Height1785 mm
Package net weight12800

The Neomounts FPMA-C340BLACK is a full-motion ceiling mount for flat screens up to 75″ and 50 kg. The screen tilts 25°, swivels 360° and rotates 6°, and the mount height adjusts between 1060 and 1560 mm. Cables run inside the pole from ceiling to screen, and an extra cover for suspended ceilings is included.

Mounting. ceiling
Screen size. 32–75″
Max load. 50 kg
VESA. 100 × 100 to 400 × 400 mm
Motion. tilt −25°…0°, swivel ±180°, rotation 6°
Height adjustment. 1060–1560 mm
Cable management. cables inside the pole
Colour. black

Description

If the pole is not long enough, the maker offers the Neomounts NS-EP100BLACK extension pole, sold separately, which adds another 107.5 cm.

Specifications

General

Brand	NEOMOUNTS
Product colour	Black
Housing material	Steel
Rotating	Yes
Swivelling	Yes
Tilt angle	25
Pivot angle	-3 - 3
Swivel angle	360
Mounting type	Ceiling
Tilt adjustment	Yes
Tilt angle range	-25 - 0
Height adjustment	Yes
Maximum VESA mount	400 x 400
Minimum VESA mount	100 x 100
Swivel angle range	-180 - 180
Height adjustment type	Manual
Number of pivot points	1
Height adjustment range	1060 - 1560
Products per pallet (EU)	30
Master (outer) case width	310
Master (outer) case height	950
Master (outer) case length	270
Master (outer) case net weight	17600
Master (outer) case gross weight	17600
Products per master (outer) case	2
Warranty	60 months
EAN	8717371446369

Display

Panel mounting interface	100 x 100/150 x 200/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400
Maximum screen size	75
Minimum screen size	32
Number of displays supported	1
Maximum weight capacity (per display)	50
