ONKRON

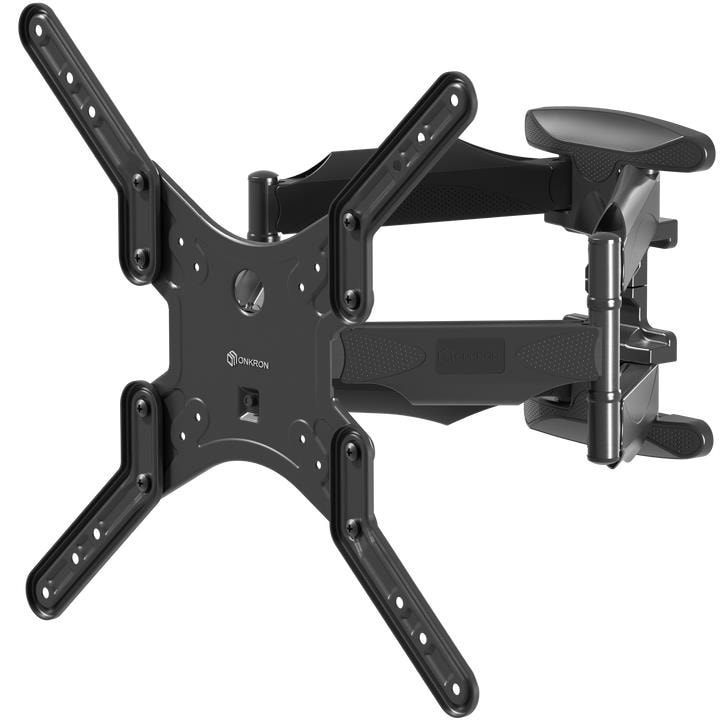

Onkron M5-B full-motion TV wall mount, 37–70″, 36.4 kg

The Onkron M5-B is a full-motion wall mount for 37–70″ TVs weighing up to 36.4 kg. The arm extends from 42 to 452 mm off the wall, and the screen swivels through 140° and tilts from −10° to +2°. Cables are routed along the arm, and the mounting kit is included.

Screen size. 37–70″
Max load. 36.4 kg
VESA. 100 × 100 to 400 × 400 mm
Motion. tilt −10°…+2°, swivel ±70°
Wall distance. 42–452 mm
Mounting hardware. included
Material. plastic, SPCC steel
Colour. black

Specifications

General

Brand	ONKRON
Product colour	Black
Housing material	Plastic/SPCC
Type	Full motion
Manual	Yes
Swivelling	Yes
Tilt angle	12
Mounting kit	Yes
Swivel angle	140
Mounting type	Wall
Easy to adjust	Yes
Tilt adjustment	Yes
Cable management	Yes
Tilt angle range	-10 - 2
Maximum VESA mount	400 x 400
Minimum VESA mount	100 x 100
Swivel angle range	-70 - 70
Distance to the wall (max)	452
Distance to the wall (min)	42
Warranty	60 months
EAN	4262392441021

Display

Panel mounting interface	100 x 100/200 x 100/200 x 200/200 x 400/300 x 300/400 x 200/400 x 300/400 x 400
Maximum screen size	70
Minimum screen size	37
Number of displays supported	1
Maximum weight capacity (per display)	36.4
