Built for networks that need to perform
Ideal for growing businesses, offices and data centres where you need a dependable backbone without overbuying features. Grab one if you're scaling up your network infrastructure on a budget.
TP-LINK

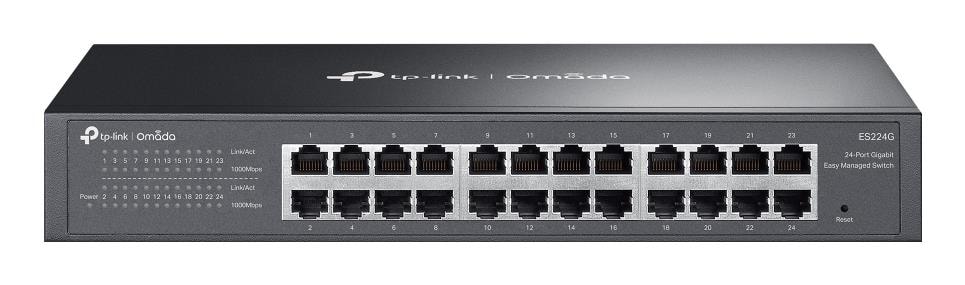

TP-LINK ES224G 24-Port Gigabit Managed Switch
- Switching capacity48
- AC input voltage100 – 240 V
- Operating temperature (T-T)0 – 5 – 50 °C
- Switch typeManaged
- Width294 mm
- Virtual LAN featuresMTU VLAN/Port-based VLAN
- Cables includedAC
- 24 Gigabit Ethernet ports deliver consistent throughput for multiple devices and servers
- Managed switch gives you VLAN, QoS and monitoring tools to shape traffic your way
- Rack-mountable design fits neatly into standard server enclosures and network cabinets
- Gigabit speeds across all ports mean no bottlenecks between workstations or storage
Description
Specifications
General
| Brand | TP-LINK |
|---|---|
| Product colour | Black |
| Series | ES224G |
| Fanless | Yes |
| Fast leave | Yes |
| User guide | Yes |
| Jumbo frames | 15000 |
| Cloud-managed | Yes |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Rack mount kit | No |
| Forwarding rate | 35.7 |
| Number of VLANs | 32 |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Firmware upgradeable | Yes |
| Packet buffer memory | 4 |
| Web-based management | Yes |
| Broadcast storm control | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Unified static configuration | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Warranty | 60 months |
| EAN | 1210002600705 |
Storage
| Switching capacity | 48 |
|---|---|
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Ports
| Port mirroring | Yes |
|---|---|
| Virtual LAN features | MTU VLAN/Port-based VLAN |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Keyboard & controls
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
Battery & power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 |
| Power source | AC |
| Power supply included | Yes |
| Surge protection voltage | 6 |
Performance & capacities
| Operating temperature (T-T) | 0 – 5 – 50 °C |
|---|
Features
| Cables included | AC |
|---|---|
| VLAN support | Yes |
| DHCP features | DHCP client |
| Auto MDI/MDI-X | Yes |
| Surge protection | Yes |
| Multicast support | Yes |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
Dimensions & weight
| Width | 294 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
