TP-LINK

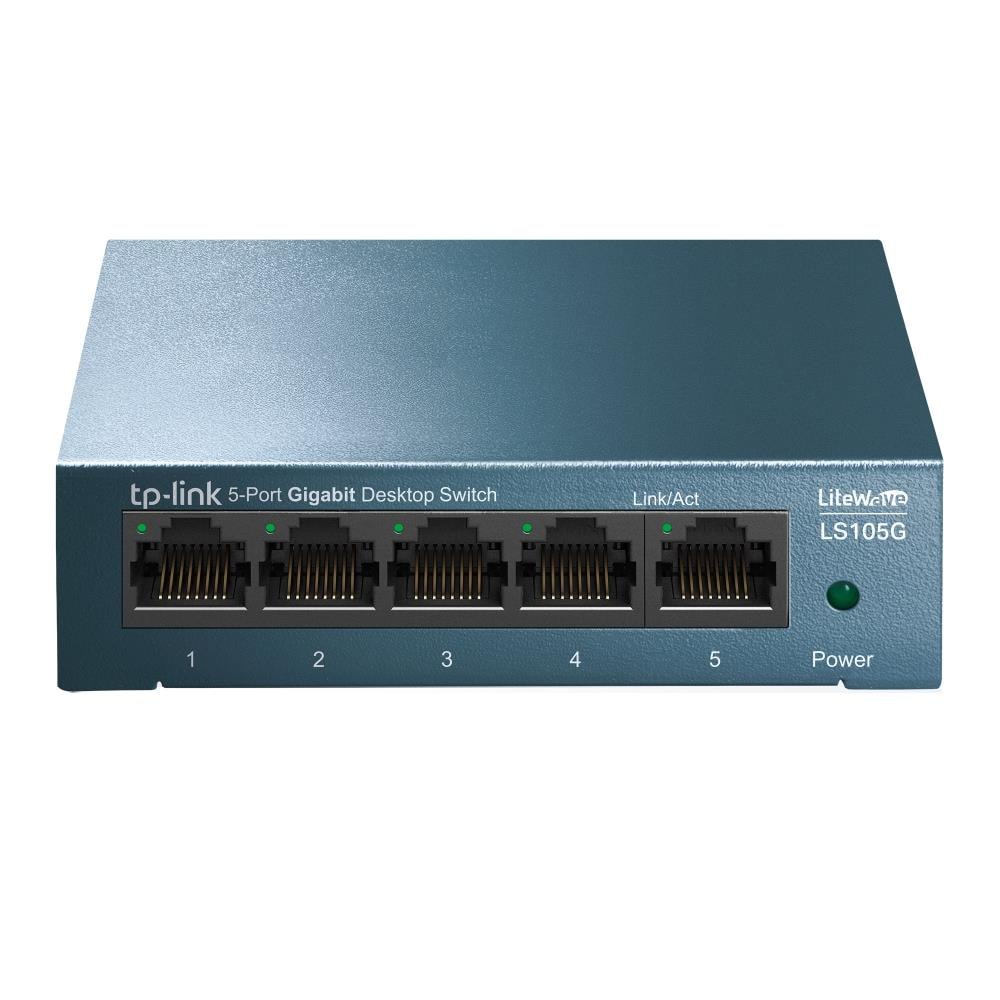

TP-Link LS105G network switch, 5 ports, Gigabit Ethernet, metal case
- Switching capacity10
- Power consumption (max)2.78 W
- Operating temperature (T-T)0 – 40 °C
- Switch typeUnmanaged
- Width99.8 mm
- Power connectorDC-in jack
- LED indicatorsActivity/LAN/Power
- Type. unmanaged
- Ports. 5 × 10/100/1000 Mbit/s
- Housing. metal
- Power. 5 V DC
- Switching capacity. 10 Gbit/s
- Mounting. desktop or wall
- Dimensions (W × D × H). 99.8 × 98 × 25 mm
- Colour. blue
Description
The maker highlights: power use adapts to link status and cable length, with 802.1p/DSCP QoS and 802.3x flow control supported.
Specifications
General
| Brand | TP-LINK |
|---|---|
| Model name | 5-Port 10/100/1000Mbps Desktop Network Switch |
| Product colour | Blue |
| Housing material | Metal |
| Jumbo frames | 16000 |
| Rack mounting | No |
| Wall mountable | Yes |
| Forwarding rate | 7.4 |
| Auto-negotiation | Yes |
| MAC address table | 2000 |
| Quick start guide | Yes |
| Packet buffer memory | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Warranty | 60 months |
| EAN | 6935364085445 |
Storage
| Switching capacity | 10 |
|---|---|
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Ports
| Power over Ethernet (PoE) | No |
|---|---|
| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Connectivity
| Networking standards | IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
|---|
Keyboard & controls
| Switch type | Unmanaged |
|---|
Battery & power
| Power consumption (max) | 2.78 W |
|---|---|
| Input voltage | 5 V |
| Power source | DC |
| Input current | 0.6 |
| Power supply included | Yes |
Performance & capacities
| Operating temperature (T-T) | 0 – 40 °C |
|---|---|
| Heat dissipation | 9.466 |
Features
| LED indicators | Activity/LAN/Power |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
Dimensions & weight
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Product Net Weight | 0.1 kg |
