Power and simplicity in one compact unit
This switch suits small offices, retail setups, or home studios where you need to connect a handful of devices and power PoE equipment without the cost and complexity of managed switches.
TP-LINK

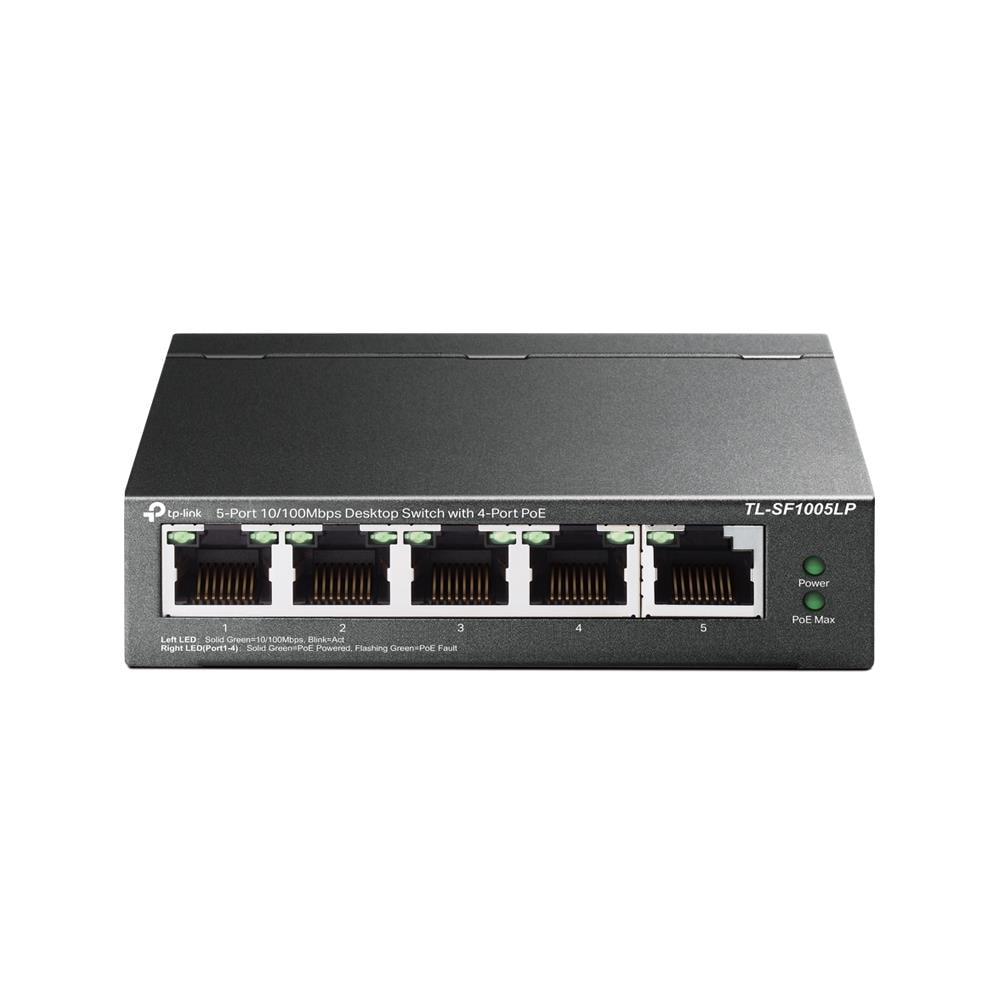

TP-LINK TL-SF1005LP 5-Port Fast Ethernet PoE Switch
- Switching capacity1
- Power consumption (max)47 W
- Operating temperature (T-T)0 – 40 °C
- Switch typeUnmanaged
- Width100 mm
- Copper ethernet cabling technology100BASE-TX/10BASE-T
- Cable types supportedCat3/Cat4/Cat5/Cat5e
- 4 PoE ports let you run power and data to remote cameras, access points, or VoIP phones through a single Ethernet line
- 5 Fast Ethernet ports (10/100 Mbps) handle everyday networking tasks at a price that makes sense
- Plug-and-play operation—no setup or configuration needed, it just works out of the box
- Fanless design keeps it silent and reliable for closets, offices, or retail spaces
Description
Specifications
General
| Brand | TP-LINK |
|---|---|
| Model name | 5-Port 10/100Mbps Desktop Switch with 4-Port PoE |
| Product colour | Black |
| Fanless | Yes |
| User guide | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Jumbo frames | 2000 |
| Rack mounting | No |
| Forwarding rate | 0.744 |
| Auto-negotiation | Yes |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Sustainability compliance | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Warranty | 60 months |
| EAN | 6935364052782 |
Storage
| Switching capacity | 1 |
|---|---|
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Ports
| Power over Ethernet (PoE) | Yes |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Total Power over Ethernet (PoE) budget | 41 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Connectivity
| Networking standards | IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
|---|
Keyboard & controls
| Switch type | Unmanaged |
|---|
Battery & power
| AC adapter included | Yes |
|---|---|
| Power consumption (max) | 47 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input voltage | 53.5 V |
| Power source | DC/PoE |
| Input current | 0.81 |
| Power supply included | Yes |
Performance & capacities
| Operating temperature (T-T) | 0 – 40 °C |
|---|---|
| Heat dissipation | 160.27 |
Features
| LED indicators | Yes |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| MAC address auto-aging supported | Yes |
Dimensions & weight
| Width | 100 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
