TP-LINK

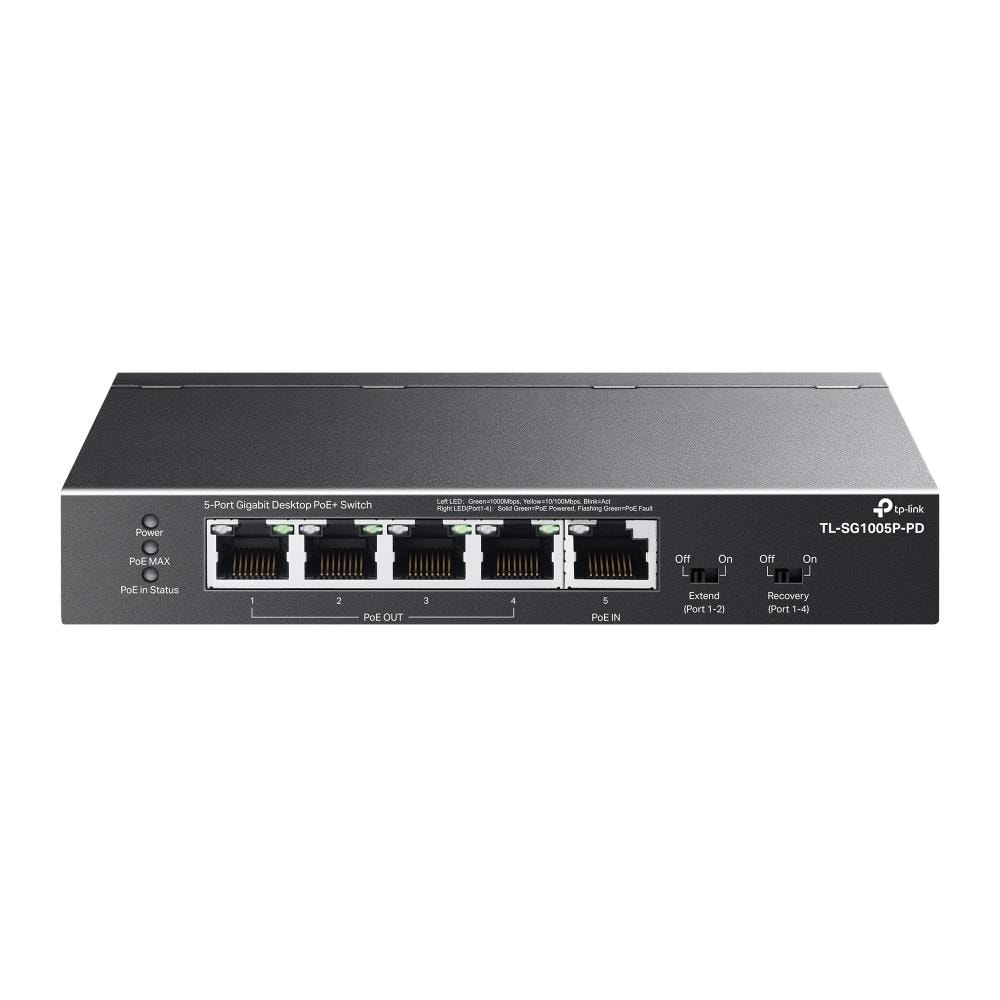

TP-Link TL-SG1005P-PD network switch, PoE++ powered, 4 PoE+ ports
- Switching capacity10
- Power consumption (max)68.59 W
- Operating temperature (T-T)0 – 30 – 70 °C
- Width158 mm
- Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
- Package typeBox
- Type. unmanaged
- Ports. 5 × 10/100/1000 Mbit/s
- Power. PoE++ / PoE+ / PoE input
- PoE ports. 4 × PoE+
- Total PoE budget. up to 66 W
- Cooling. fanless
- Dimensions (W × D × H). 158 × 101 × 25 mm
- Colour. black
Description
The maker highlights: the output PoE budget depends on the input – 66 W with 802.3bt Type 4, 47 W with Type 3, 21 W with 802.3at and 9 W with 802.3af. In Extend Mode PoE+ reaches up to 250 m.
Specifications
General
| Brand | TP-LINK |
|---|---|
| Model name | TL-SG1005P-PD |
| Product colour | Black |
| Fanless | Yes |
| User guide | Yes |
| IGMP snooping | Yes |
| Number of fans | 0 |
| Wall mountable | Yes |
| Forwarding rate | 7.44 |
| Auto-negotiation | Yes |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Warranty | 36 months |
| EAN | 4895252501117 |
Storage
| Switching capacity | 10 |
|---|---|
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Ports
| Power over Ethernet (PoE) | Yes |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Total Power over Ethernet (PoE) budget | 66 |
| Power over Ethernet (PoE) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Connectivity
| Networking standards | IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
|---|
Battery & power
| Power consumption (max) | 68.59 W |
|---|---|
| Power source | PoE |
| Power supply included | No |
Performance & capacities
| Operating temperature (T-T) | 0 – 30 – 70 °C |
|---|---|
| Heat dissipation | 233.206 |
Features
| LED indicators | Yes |
|---|---|
| 10G support | Yes |
| Package type | Box |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| MAC address auto-aging supported | Yes |
| Quality of Service (QoS) support | Yes |
| MAC address auto-learning supported | Yes |
Dimensions & weight
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
| Product Net Weight | 0.3 kg |
