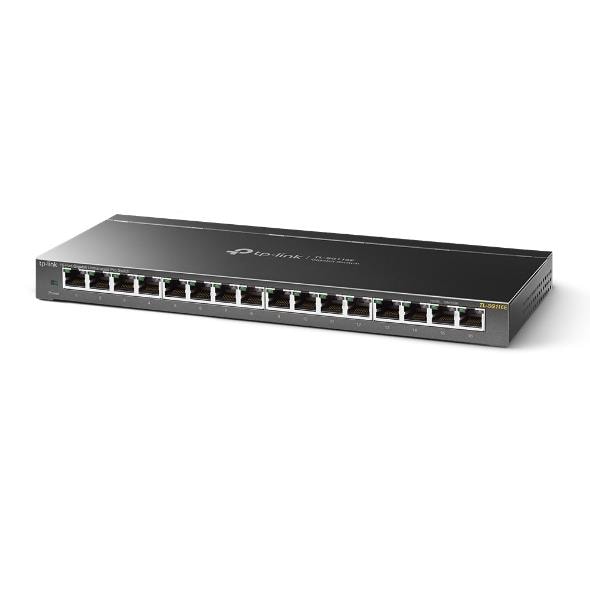

TP-LINK TL-SG116E 16-Port Gigabit Switch
TP-LINK

TP-LINK TL-SG116E 16-Port Gigabit Switch

  • Switching capacity32
  • Power consumption (max)9.19 W
  • Operating temperature (T-T)0 – 40 °C
  • Switch typeUnmanaged
  • Width286 mm
  • Virtual LAN featuresProtocol-based VLAN/Tagged VLAN
  • Cables includedAC

The TP-LINK TL-SG116E is a straightforward 16-port Gigabit switch built for small networks that need reliable connectivity without the cost of managed features. Get solid performance at a genuine value price.

  • 16 Gigabit Ethernet ports handle real-world throughput at 10/100/1000 Mbps
  • Unmanaged design means plug-and-play setup—no configuration needed
  • Desktop form factor fits neatly on a desk or shelf in offices and small workspaces
  • Ideal for connecting multiple devices in a growing network without breaking budget

Description

Wired speed where it matters

Pick this switch if you're running a small office, home lab, or branch location where you need extra ports and Gigabit speed without management overhead.

Specifications

General

BrandTP-LINK
Model name16-Port Gigabit Unmanaged Pro Switch
Product colourBlack
Housing materialMetal
Full duplexYes
Rubber feetYes
Jumbo frames10000
IGMP snoopingYes
Plug and PlayYes
Rack mountingNo
Rate limitingYes
Forwarding rate23.81
Number of VLANs32
Auto-negotiationYes
Link aggregationYes
Number of queues4
MAC address table8000
Quick start guideYes
Store-and-forwardYes
Packet buffer memory4.1
Broadcast storm controlYes
Operating relative humidity (H-H)10 - 90
Warranty60 months
EAN6935364084301

Storage

Switching capacity32
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)No
Port mirroringYes
Virtual LAN featuresProtocol-based VLAN/Tagged VLAN
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet (copper) ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u

Keyboard & controls

Switch typeUnmanaged
Switch layerL2

Battery & power

AC adapter includedYes
Power consumption (max)9.19 W
Input voltage12 V
Power sourceDC
Input current1
Power supply includedYes
Cable length detectionYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation31.68

Features

Cables includedAC
LED indicatorsYes
10G supportNo
VLAN supportYes
Auto MDI/MDI-XYes
Loop protectionYes
Jumbo frames supportYes
Cable types supportedCat3/Cat4/Cat5/Cat5e/Cat6
Quality of Service (QoS) supportYes

Dimensions & weight

Width286 mm
Depth111.7 mm
Height25.4 mm
