ADATA LEGEND 710 M.2 NVMe SSD, 2 TB, PCIe 3.0
ADATA

ADATA LEGEND 710 M.2 NVMe SSD, 2 TB, PCIe 3.0

  • Memory type3D NAND
  • SSD capacity2000 GB
  • Operating temperature (T-T)0 – 70 °C
  • Security algorithms256-bit AES
  • Width22 mm

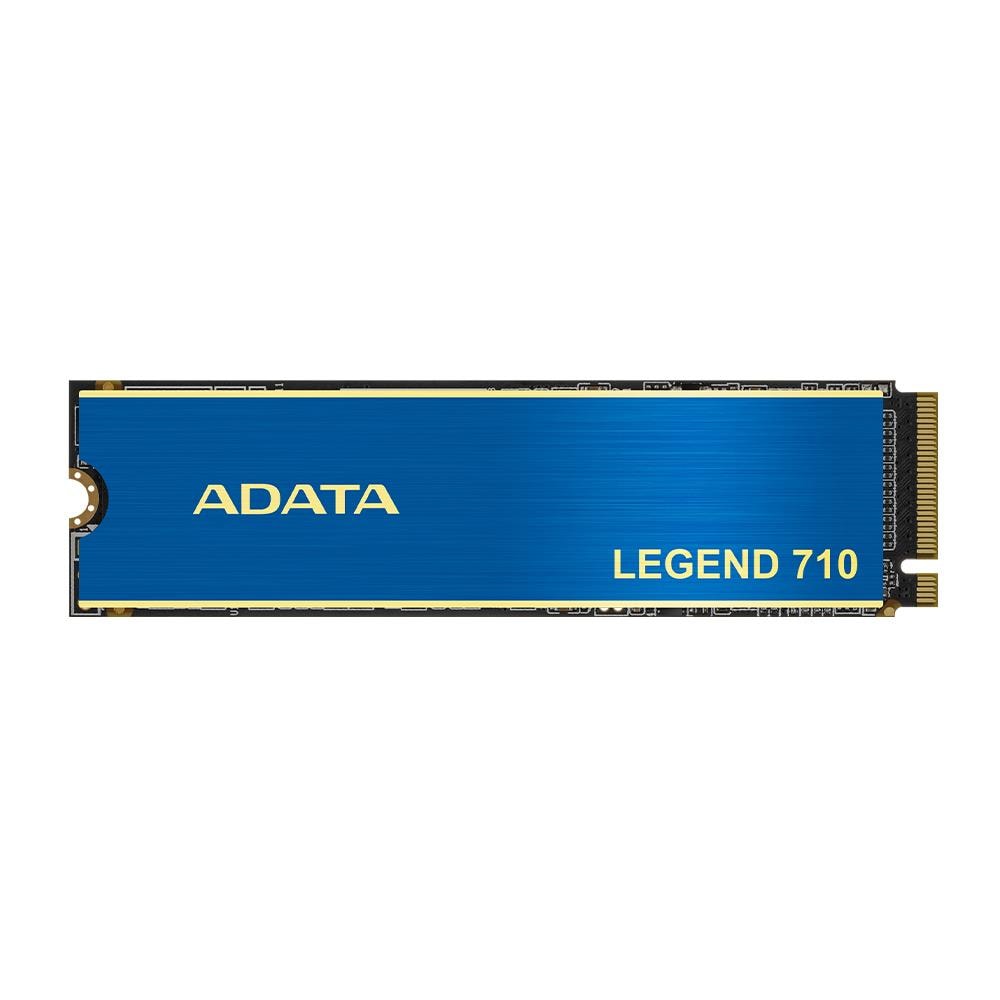

The ADATA LEGEND 710 is a 2 TB M.2 2280 SSD that connects over PCIe 3.0 x4 and uses the NVMe 1.4 protocol. It reads at up to 2400 MB/s and writes at up to 1800 MB/s, which is plenty for a quick system drive and a large file library in a desktop PC or laptop. A blue heatsink with gold trim sits on top.

  • Capacity. 2 TB
  • Form factor. M.2 2280
  • Interface. PCIe 3.0 x4, NVMe 1.4
  • Read speed. up to 2400 MB/s
  • Write speed. up to 1800 MB/s
  • Endurance (TBW). 520 TB
  • MTBF. 1500000 h
  • Manufacturer code. ALEG-710-2TCS

Description

The maker highlights: SLC caching and HMB, LDPC error correction, 256-bit AES hardware encryption and the free SSD ToolBox utility for firmware updates and drive health monitoring.

Specifications

General

BrandADATA
ECCYes
ManualYes
InterfacePCI Express 3.0
TBW rating520
Component forPC/Laptop
Controller typeRealtek RTS5766DL
Operating shock1500
Random read (4KB)200000
Random write (4KB)150000
PCI Express interface data lanesx4
Mean time between failures (MTBF)1500000
Warranty36L months
EAN4711085939470

Memory

Memory type3D NAND

Storage

SSD capacity2000 GB
SSD form factorM.2
NVMeYes
SSD seriesLEGEND 710
M.2 SSD size2280 (22 x 80 mm)
NVMe version1.4
Storage temperature (T-T)-40 - 85

Connectivity

Security algorithms256-bit AES

Software & security

Hardware encryptionYes

Performance & capacities

Operating temperature (T-T)0 – 70 °C
Read speed2400
Write speed1800
Maximum operating temperature70
Minimum operating temperature0

Dimensions & weight

Width22 mm
Depth80 mm
Height3.13 mm
Weight9 g
Product Net Weight0.01 kg
