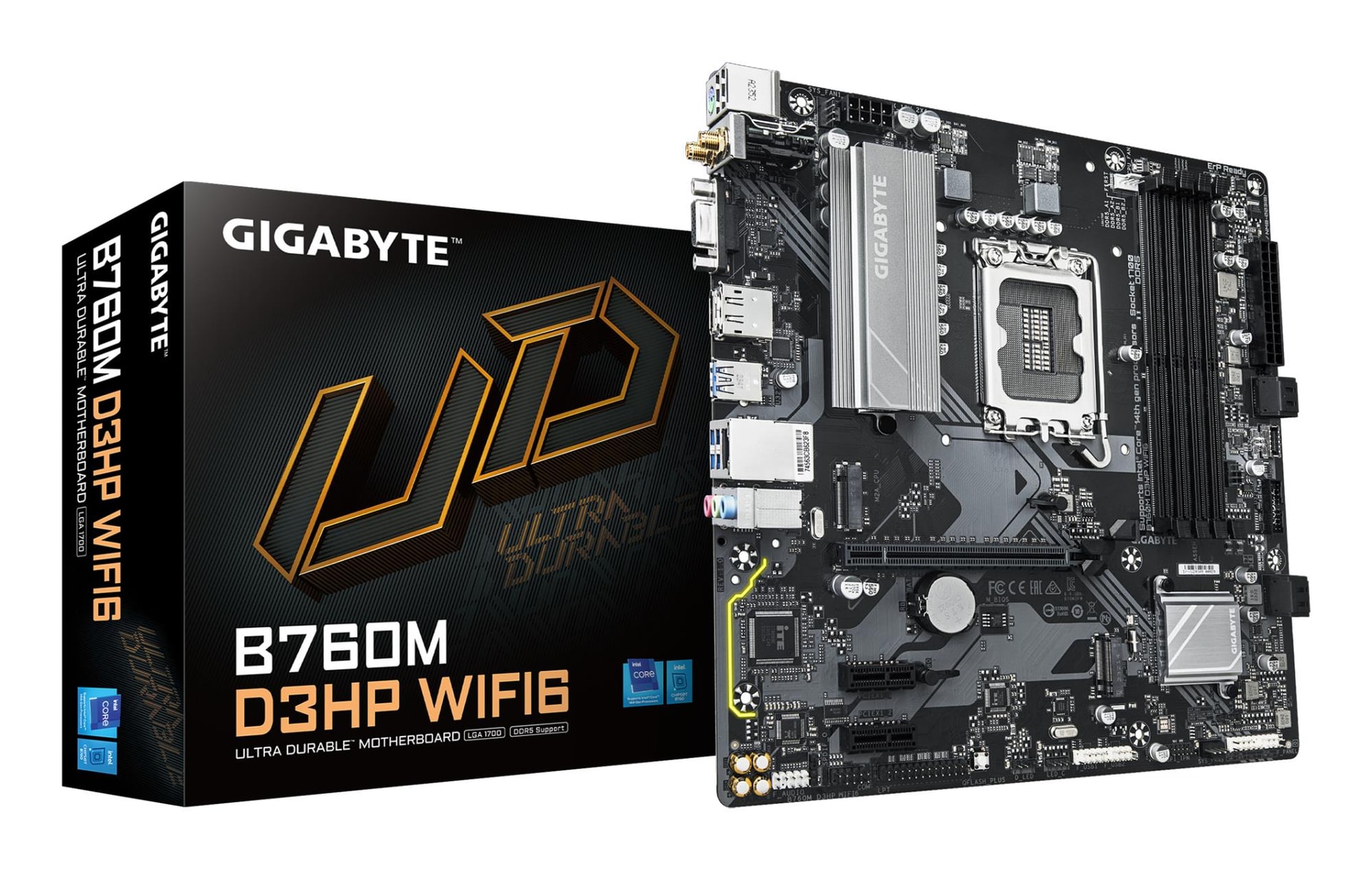

Gigabyte B760M D3HP WiFi6 motherboard, LGA 1700, Micro-ATX, DDR5
GIGABYTE

Gigabyte B760M D3HP WiFi6 motherboard, LGA 1700, Micro-ATX, DDR5

  • Maximum resolution4096 x 2304
  • Processor manufacturerIntel
  • Maximum internal memory192 GB
  • Number of HDDs supported4
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10/5
  • Wi-Fi standardsWi-Fi 6 (802.11ax)
  • Audio chipRealtek ALC897

The Gigabyte B760M D3HP WiFi6 is a Micro-ATX motherboard for 12th, 13th and 14th Gen Intel Core processors in the LGA 1700 socket. Four DDR5 slots take up to 192 GB of memory, two PCIe 4.0 M.2 slots hold the SSDs, and Wi-Fi 6, Bluetooth 5.3 and Gigabit Ethernet handle connectivity.

  • CPU socket. LGA 1700
  • Chipset. Intel B760
  • Form factor. Micro-ATX
  • Memory. DDR5, 4 slots, up to 192 GB
  • M.2 slots. 2, PCIe 4.0
  • Graphics card slot. PCIe 4.0
  • Networking. Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.3
  • Manufacturer code. B760M D3HP WIFI6 1.0

Description

The maker highlights: Q-Flash Plus for updating the BIOS without a CPU, memory or graphics card installed, Smart Fan 6 fan control, and HDMI, DisplayPort and D-Sub outputs.

Specifications

General

BrandGIGABYTE
Product colourDark brown
HDCPYes
Line-inYes
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size128
Clear CMOS jumperYes
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityECC & Non-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage/Water cooling
Number of memory slots4
Motherboard form factormicro ATX
Number of M.2 (M) slots2
1st M.2 largest key size2280
2nd M.2 largest key size2280
Number of RGB LED pin headers2
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Products per shipping (inner) case1
1st M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty36 months
EAN4719331867638

Display

Maximum resolution4096 x 2304

Processor

Processor manufacturerIntel
Motherboard chipsetIntel B760 Express
Processor socketLGA 1700
CPU fan connectorYes
Motherboard chipset familyIntel
Compatible processor seriesIntel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Supported processor socketsLGA 1700
Number of CPU fan connectors1

Memory

Maximum internal memory192 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot48

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported6
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III

Audio

Audio chipRealtek ALC897
Microphone inYes
Audio output channels7.1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerRealtek RTL8111H
Parallel connectorYes
USB 2.0 connectors2
12V power connectorYes
DisplayPort version1.2
PS/2 ports quantity1
Serial port headers1
S/PDIF out connectorYes
WiFi-AP antenna jack2
DisplayPorts quantity1
Front panel connectorYes
Ethernet interface typeGigabit Ethernet
VGA (D-Sub) ports quantity1
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of chassis fan connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of EPS power connectors (8-pin)1

Connectivity

Wi-FiYes
Wi-Fi standardsWi-Fi 6 (802.11ax)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN controller modelRealtek RTL8851BE
BluetoothYes
Bluetooth version5.3
Antenna includedYes

Software & security

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 10 x64/Windows 11 x64

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Power source typeATX
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10/5
Cooling typePassive
Supported memory clock speeds4400/4800/5200/5600
Supported memory clock speed (max)5600

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width244 mm
Depth244 mm
Height35 mm
Weight1.11 kg
Product Net Weight0.5 kg
