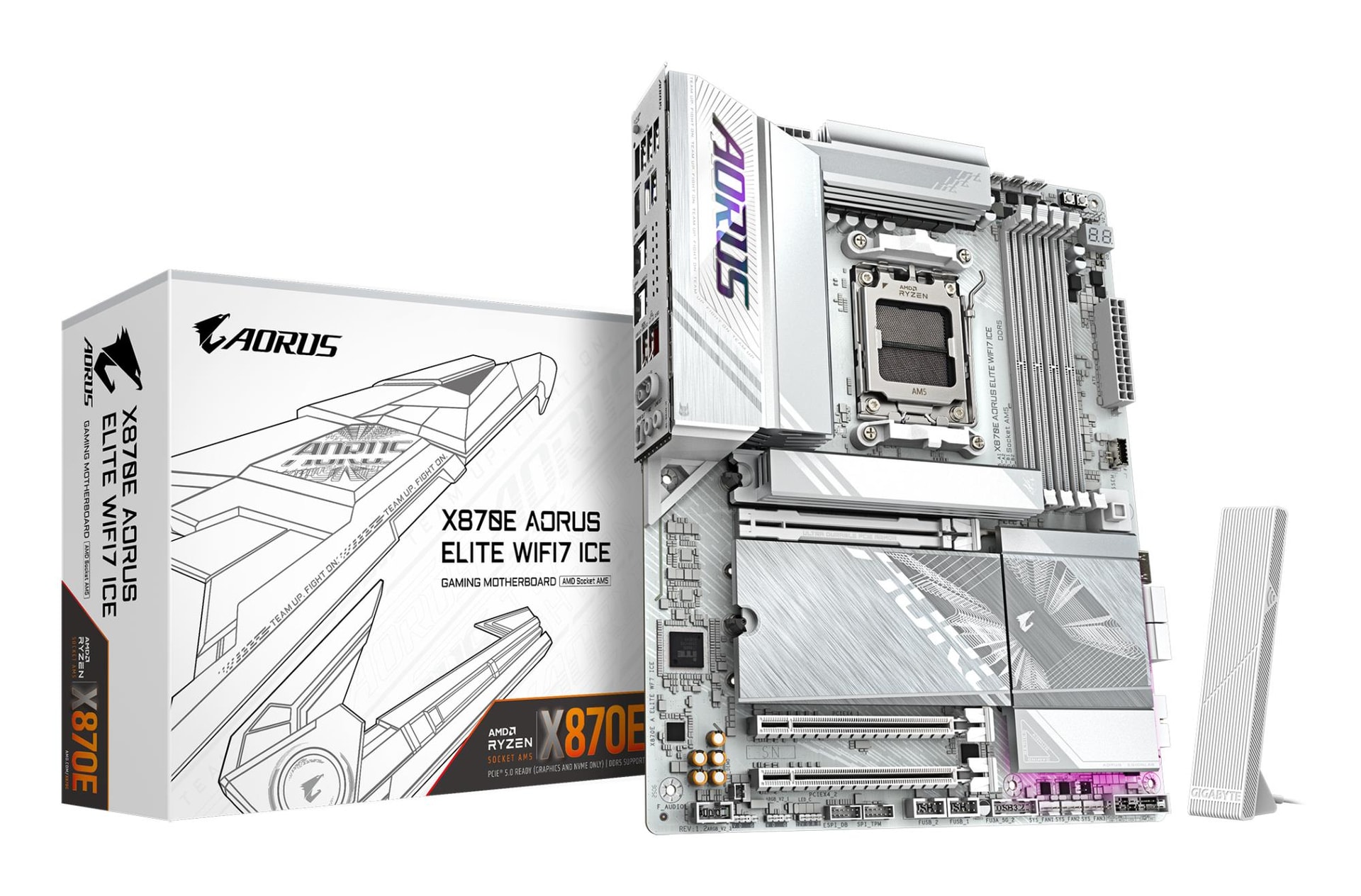

Gigabyte X870E Aorus Elite WiFi7 Ice motherboard, AM5, ATX, DDR5
GIGABYTE

Gigabyte X870E Aorus Elite WiFi7 Ice motherboard, AM5, ATX, DDR5

  • Maximum resolution4096 x 2160
  • Processor manufacturerAMD
  • Maximum internal memory256 GB
  • Number of HDDs supported4
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10/5
  • Wi-Fi standardsWi-Fi 7 (802.11be)
  • Audio chipRealtek ALC1220-VB

The Gigabyte X870E Aorus Elite WiFi7 Ice is a white Aorus-series ATX motherboard with the X870E chipset for AMD Ryzen 7000, 8000 and 9000 Series processors in the AM5 socket. Four M.2 slots, three of them PCIe 5.0, a PCIe 5.0 graphics card slot and two USB4 Type-C ports suit a fast gaming or work PC. Wi-Fi 7, Bluetooth 5.4 and 2.5 Gbit/s Ethernet provide connectivity.

  • CPU socket. AM5
  • Chipset. AMD X870E
  • Form factor. ATX
  • Memory. DDR5, 4 slots, up to 256 GB
  • M.2 slots. 4 (3 × PCIe 5.0, 1 × PCIe 4.0)
  • Graphics card slot. PCIe 5.0
  • Networking. 2.5 Gbit/s Ethernet, Wi-Fi 7, Bluetooth 5.4
  • Colour. white

Description

The maker highlights: a twin 16+2+2 phase DrMOS VRM, an M.2 Thermal Guard L heatsink, quick-release mounting (EZ-Latch Plus), a Realtek ALC1220-VB audio codec and an optical S/PDIF output.

Specifications

General

BrandGIGABYTE
Product colourWhite
HDCPYes
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size256
Clear CMOS jumperYes
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage/Water cooling
Number of memory slots4
Motherboard form factorATX
Number of M.2 (M) slots4
1st M.2 largest key size25110
2nd M.2 largest key size22110
3rd M.2 largest key size22110
4th M.2 largest key size22110
Number of RGB LED pin headers4
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Products per shipping (inner) case1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation5.0
4th M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty36 months
EAN4719331871529

Display

Maximum resolution4096 x 2160

Processor

Processor manufacturerAMD
Motherboard chipsetAMD X870E
Processor socketSocket AM5
CPU fan connectorYes
Motherboard chipset familyAMD
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Number of CPU fan connectors2

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot64

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported8
Supported storage drive interfacesM.2, PCI Express 5.0, SATA III

Graphics

On-board graphics cardNo

Audio

Audio chipRealtek ALC1220-VB
Microphone inYes
Audio output channels7.1
Digital audio optical out1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerRealtek RTL8125
S/PDIF out portYes
USB 2.0 connectors2
12V power connectorYes
DisplayPort version1.4
WiFi-AP antenna jack2
Front panel connectorYes
Ethernet interface type2.5 Gigabit Ethernet
USB 3.2 Gen 2x2 connectors1
EPS power connector (8-pin)Yes
USB4 Gen 2x2 ports quantity2
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of water pump connectors2
Number of chassis fan connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of EPS power connectors (8-pin)2

Connectivity

Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
Top Wi-Fi standardWi-Fi 7 (802.11be)
WLAN controller modelRealtek RTL8922AE
BluetoothYes
Bluetooth version5.4
Antenna includedYes

Software & security

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 11 x64

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Power source typeATX
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10/5
Cooling typePassive
Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
Supported memory clock speed (max)8200

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width305 mm
Depth244 mm
Height35 mm
Weight2.64 kg
Product Net Weight0.8 kg
