Big storage, built for speed
A good fit for gamers, video editors and anyone upgrading from a smaller or slower drive. Check that your device has a compatible PCIe 4.0 M.2 2280 slot, then grab it and get going.
SAMSUNG

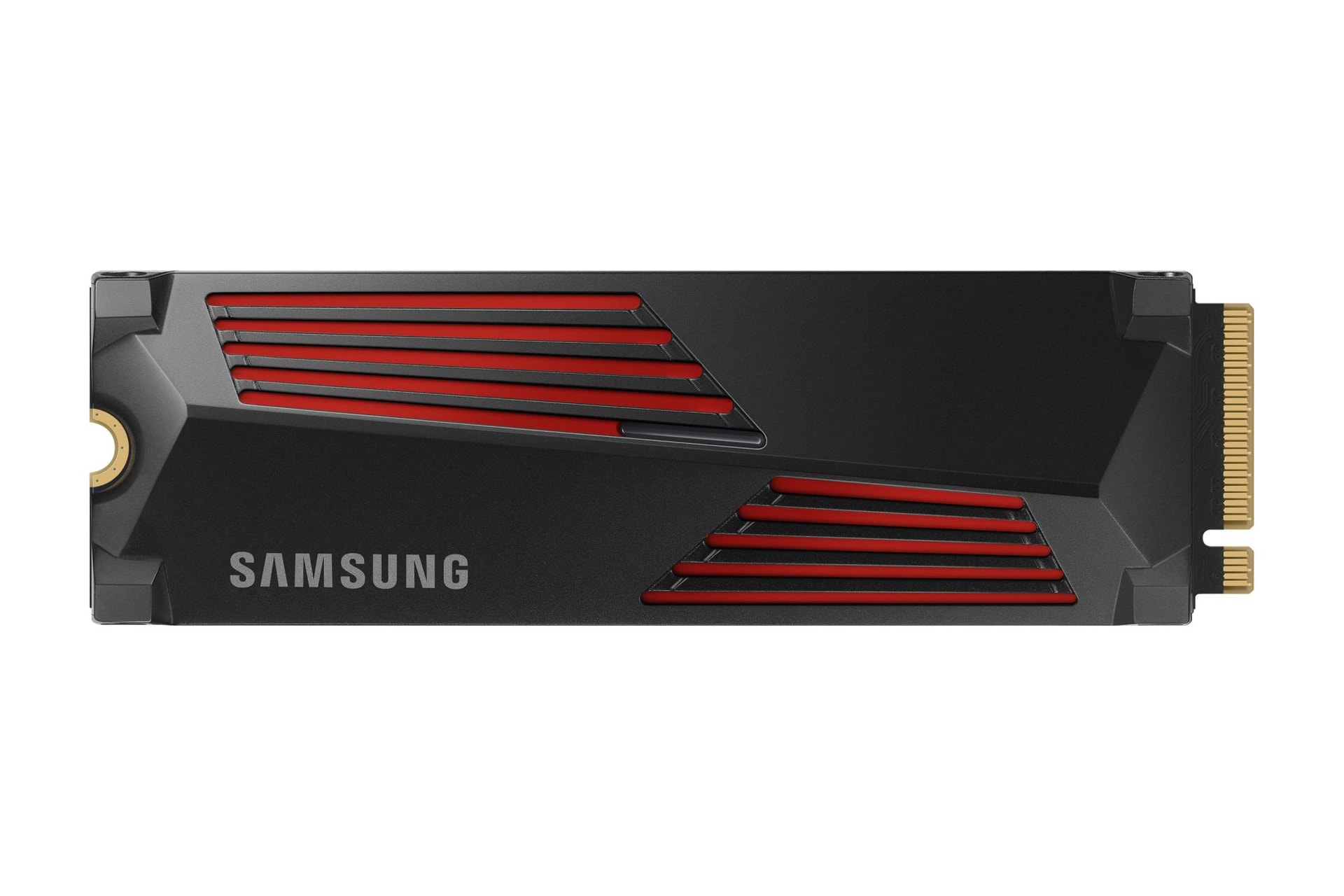

Samsung 990 PRO 4TB M.2 NVMe SSD with Heatsink
- Memory typeV-NAND TLC
- SSD capacity4000 GB
- Power consumption (max)8.6 W
- Operating temperature (T-T)0 – 70 °C
- Security algorithms256-bit AES
- Width25 mm
- Package typeHanging box
- Up to 7450 MB/s read and 6900 MB/s write over PCI Express 4.0, so big files and game loads move quickly.
- 4000 GB of V-NAND TLC storage keeps games, projects and media on a single drive.
- Built-in heatsink helps manage heat during long, demanding sessions.
- Standard M.2 2280 (22 x 80 mm) NVMe format fits compatible desktops and laptops.
Description
Specifications
General
| Brand | SAMSUNG |
|---|---|
| Model name | 990 Pro |
| Interface | PCI Express 4.0 |
| Component for | PC/Game console |
| Operating shock | 1500 |
| Random read (4KB) | 1600000 |
| Random write (4KB) | 1550000 |
| Mean time between failures (MTBF) | 1500000 |
| Warranty | 60L months |
| EAN | 8806095255811 |
Memory
| Memory type | V-NAND TLC |
|---|
Storage
| SSD capacity | 4000 GB |
|---|---|
| SSD form factor | M.2 |
| NVMe | Yes |
| SSD series | 990 PRO with Heatsink |
| M.2 SSD size | 2280 (22 x 80 mm) |
| NVMe version | 2.0 |
Connectivity
| Security algorithms | 256-bit AES |
|---|
Software & security
| Hardware encryption | Yes |
|---|
Battery & power
| Power consumption (max) | 8.6 W |
|---|---|
| Operating voltage | 3.3 |
| Power consumption (idle) | 0.055 |
| Power consumption (average) | 6.5 |
Performance & capacities
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Read speed | 7450 |
| Write speed | 6900 |
Features
| Package type | Hanging box |
|---|---|
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| DevSlp (device sleep) support | Yes |
Dimensions & weight
| Width | 25 mm |
|---|---|
| Depth | 80.15 mm |
| Height | 80.15 mm |
| Weight | 28 g |
| Product Net Weight | 0.03 kg |
