TP-LINK

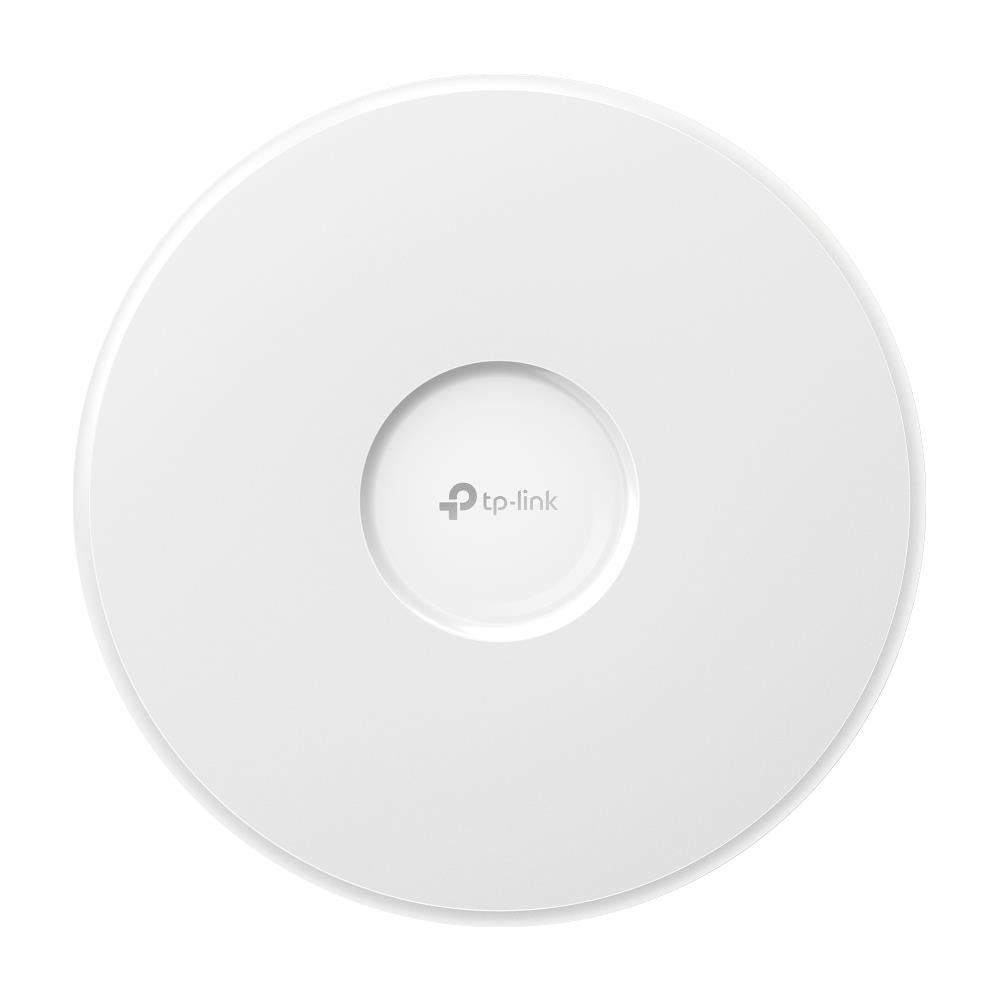

TP-LINK EAP772 WiFi 6 Access Point 9300 Mbps

  • Storage temperature (T-T)-40 - 70
  • Operating temperature (T-T)0 – 40 °C
  • Bluetooth version5.2
  • Width220 mm
  • Ethernet LAN (RJ-45) ports1
  • Number of SSID supported24

The TP-LINK EAP772 is a professional-grade WiFi 6 access point built to deliver fast, reliable coverage across offices and larger homes. With 9300 Mbps peak throughput and dual-band 802.11ax support, you get the speed and range needed to handle multiple devices without slowdown.

  • WiFi 6 (802.11ax) with backward compatibility for older devices via 802.11a/b/g/n/ac standards
  • Single 2.5 Gigabit Ethernet port for high-speed backhaul and wired connections
  • Flexible mounting options—ceiling or wall installation to fit your space
  • Sleek white finish that blends into any environment

Description

Built for speed and easy deployment

Ideal for businesses expanding their wireless network or homes with dense device coverage demands. Mount it once and enjoy consistent performance throughout the day.

Specifications

General

BrandTP-LINK
Model nameEAP772
Product colourWhite
5 GHzYes
6 GHzYes
2.4 GHzYes
PlacementCeiling, Wall
BeamFormingYes
Mounting kitYes
Number of users380
Web-based managementYes
Airtime Fairness (ATF)Yes
Access Control List (ACL)Yes
Maximum data transfer rate9300
Operating relative humidity (H-H)10 - 90
Maximum data transfer rate (5 GHz)2880
Maximum data transfer rate (6 GHz)5760
Maximum data transfer rate (2.4 GHz)574
Remote Authentication Dial-In User Service (RADIUS)Yes
Warranty60 months
EAN8885020623055

Storage

Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates2500 Mbit/s

Connectivity

BluetoothYes
Bluetooth version5.2
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n
Security algorithmsSNMP/SNMPv2/SNMPv3/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal
MIMOYes
MIMO typeMulti User MIMO
Antenna typeInternal

Battery & power

AC adapter includedNo

Performance & capacities

Operating temperature (T-T)0 – 40 °C
MAC address filteringYes

Features

LED indicatorsYes
VLAN supportYes
Number of SSID supported24
Quality of Service (QoS) supportYes
Service Set Identifier (SSID) featuresMultiple SSIDs

Dimensions & weight

Width220 mm
Depth220 mm
Height32.5 mm
