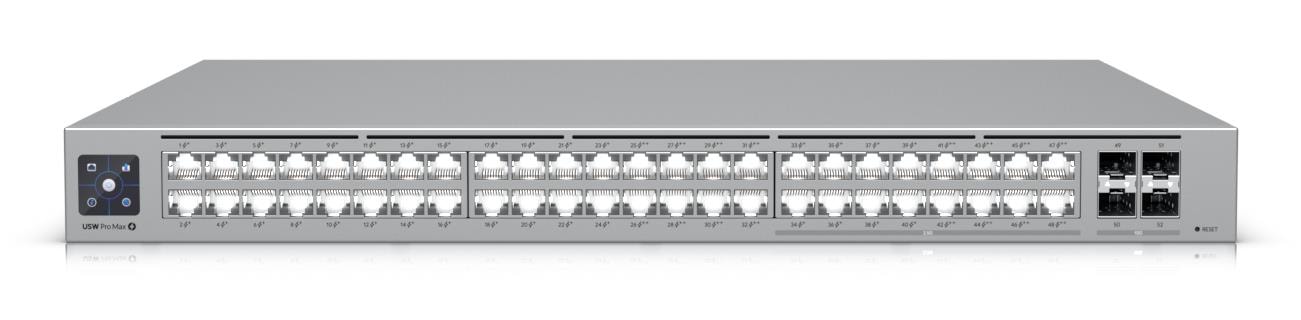

Ubiquiti USW-PRO-MAX-48-POE Managed Switch 48-Port Gigabit
UBIQUITI

Ubiquiti USW-PRO-MAX-48-POE Managed Switch 48-Port Gigabit

  • Display typeLCM
  • Switching capacity224
  • Power consumption (max)820 W
  • Operating temperature (T-T)0 – 5 – 40 °C
  • Networking standardsIEEE 802.1x
  • Switch typeManaged
  • Width442.4 mm
  • Power connectorAC-in jack

A robust managed switch built for networks that need serious throughput without the premium price tag. The USW-PRO-MAX-48-POE delivers 48 Gigabit ports plus 4 SFP uplinks, all backed by 720 watts of PoE power to run your access points, cameras and IP phones directly from the switch.

  • 48 Gigabit Ethernet ports handle your growing device count without bottlenecks
  • 4 SFP ports give you flexible uplink options for future expansion
  • 720W PoE budget powers dozens of networked devices from one box
  • Managed switching lets you fine-tune traffic, VLANs and security to match your needs

Description

Built for scale and simplicity

Ideal for businesses, schools and larger deployments where reliability matters and you want intelligent control over your network. Rack-mount design fits neatly into standard infrastructure.

Specifications

General

BrandUBIQUITI
Form factor1U
Model namePro Max 48 PoE
Product colourGrey
Housing materialSGCC
ManualYes
Throughput112
IPv4 routes12000
Static routeYes
IGMP snoopingYes
Rack mountingYes
Rate limitingYes
Rack mount kitYes
Forwarding rate167
Number of VLANs1000
MAC address table32000
Packet buffer memory2
Broadcast storm controlYes
Sustainability complianceYes
SFP+ module slots quantity4
Operating relative humidity (H-H)10 - 90
Warranty12 months
EAN810084692721

Display

Display typeLCM
Backlight displayYes

Storage

Switching capacity224

Ports

Power over Ethernet (PoE)Yes
Port mirroringYes
Power connectorAC-in jack
Virtual LAN featuresVoice VLAN
Power over Ethernet (PoE) voltage57
2.5G Ethernet (copper) ports quantity16
Total Power over Ethernet (PoE) budget720
Gigabit Ethernet (copper) ports quantity32
Power over Ethernet (PoE) power per port15.4
Power over Ethernet (PoE) type supportedPoE+/PoE++ (4PPoE)
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity48
Power over Ethernet plus (PoE+) ports quantity32
Power over Ethernet 4PPoE (PoE++) ports quantity16

Connectivity

Networking standardsIEEE 802.1x

Keyboard & controls

Switch typeManaged
Reset buttonYes
Switch layerL3

Battery & power

Power consumption (max)820 W
AC input voltage100 – 240 V
AC input frequency50/60
Power sourceAC
Power supply includedYes
Redundant power supply (RPS) supportYes

Performance & capacities

Operating temperature (T-T)0 – 5 – 40 °C
Heat dissipation341.2

Features

Cables includedPower
LED indicatorsSystem
10G supportNo
VLAN supportYes
DHCP featuresDHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
Loop protectionYes
Flow control supportYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width442.4 mm
Depth399.6 mm
Height43.7 mm
Weight6.2 kg
